Piping Part Designation:
Usage category (e.g. gas / water / fire protection)
Piping Part Type: Component
shape description
Inline valve/part: Straight
valve/part
Inline_Reducing:
Reducer
Coupling/fitting
Flange
Gasket
90° corner
90° corner with
reducing
90° corner with welded
outlet
Elbow
T-piece
T-piece with reducing
T-piece with welded
outlet
Mounting
Piping Part ISOGEN CODE:
ISOGEN code for the part - 4 characters
Piping Part Nominal Pressure
[Pa]
Piping Part Max Peak
Pressure [Pa]
Piping Part Min Peak
Pressure [Pa]
Piping Part Max Permanent
Pressure [Pa]
Piping Part
Min Permanent Temperature [Celsius]
Piping Part Max Permanent
Temperature [Celsius]
Piping Part Pressure Drop
[Pa]

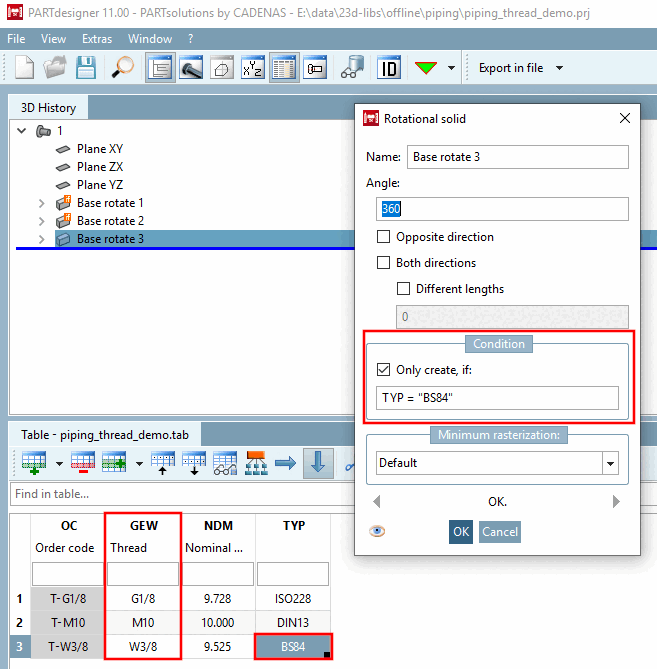

Piping Part Nominal Thread
Size: When stating the corresponding table variable, the

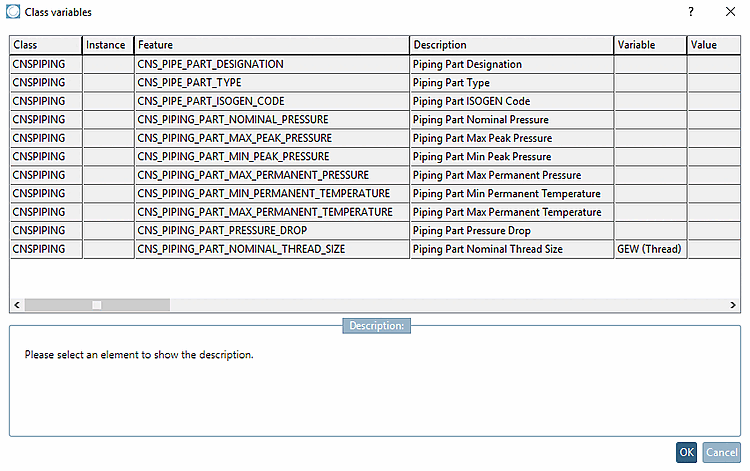

feature can be controlled by line (see for example Fig. „Class
"CNSPIPING"“
"GEW").
