4.9.6. Adjust table values -> Set bitmap with condition / plinkcommon.cfg -> Block [BMPMAPPING_<column_name>] -> Key "BMPCOND<number>"

With the help of the option Set bitmap with condition (PDataMgr only) you can set a condition for the displayed value and map it to a bitmap.

The setting only applies for PARTdataManager.

Setting in configuration file $CADENAS_SETUP/plinkcommon.cfg:

Block [BMPMAPPING_<variable name>], key BMPCOND<NUMBER>, first value contains a condition for the displayed value, the second value contains the path to bitmap.

Example:

[BMPMAPPING_PRICE1]
BMPCOND0="PRICE1.GT.0.0","$CADENAS_SETUP/bitmaps/linkdbdemo/ecat/japan.bmp"

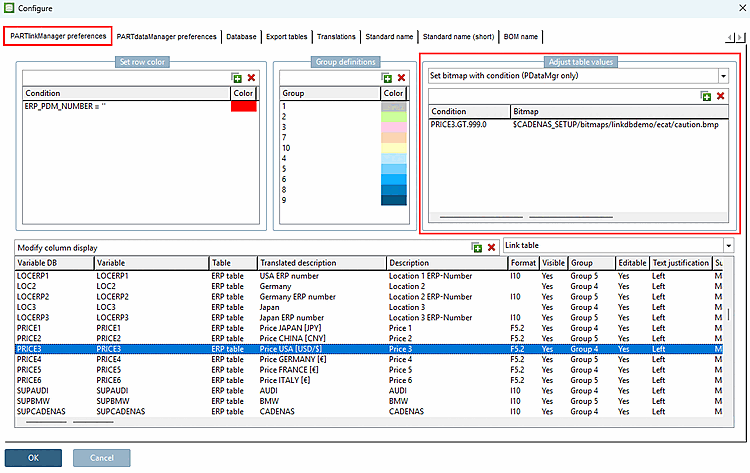

Setting in user interface under PARTlinkManager -> Extras menu -> Configure dialog box -> PARTlinkManager preferences tab -> Adjust table values -> Set bitmap with condition (PDataMgr only)

Example "PRICE1" column of PLDBDEMO:

ConditionBitmap
PRICE1.GT.0.0Bitmap path

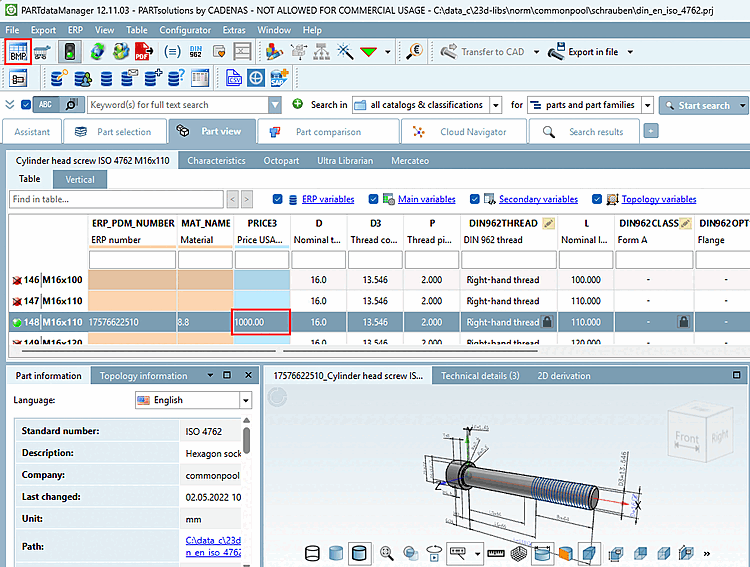

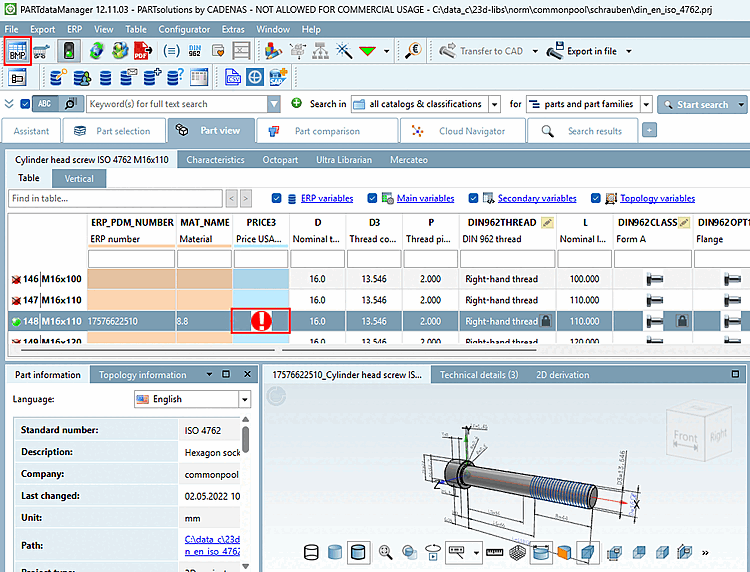

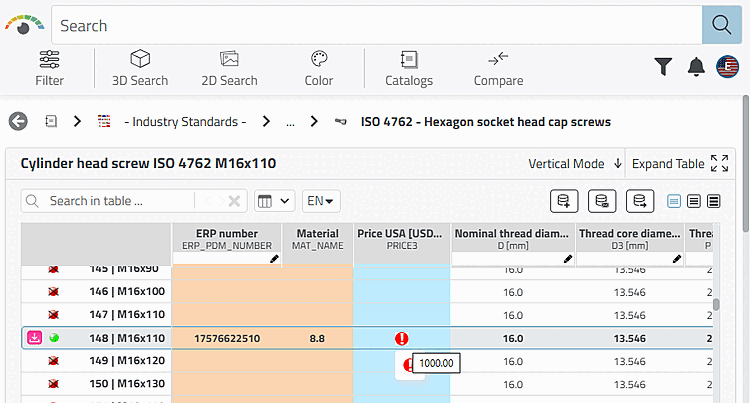

Display in PARTdataManager
