4.7.7.3. Classification Toolbar (9.03 SP1, 9.00)

As of v9.03 the Classification Toolbar is available in revised form.

With the aid of the Classimporter you can apply your own company catalog, which uses your company internal class system.[88]

With the aid of the ClassificationToolbar, which can be displayed in PARTdataManager, you can further modify the structure of the class system.[89]

Classification Toolbar

Classification Toolbar

The following commands are available:

Add class

Remove class

Edit the classification features and the description.

Move class

Add datasets

Delete datasets

Edit dataset

Move datasets

Edit views

Edit project in batch mode

Assign parts per geometrical search...

Update tool

Examples:

  • Edit class attributes

    The following figure shows the Edit class dialog box. Here you can make changes on already existing classes.

    Edit class

    Edit class

  • Assign parts with the aid of the geometric search

    When a new part has been created, then on its base geometric similar parts can be searched. So you can see into which class the part is fitting best. In a next step you can move the search part or found parts accordingly.

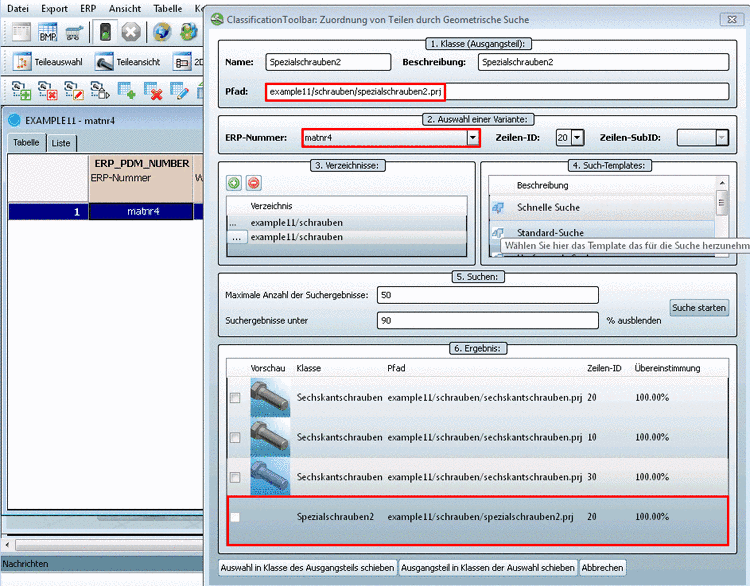

    Assign parts per geometrical search.

    Assign parts per geometrical search.



[88] Detailed information on this is found under Classimporter.

[89] Detailed information on this is found under ClassificationToolbar.
