3.7.2. Control visibility of functions (buttons)

In the CAD specific configuration file if<cadname>.cfg, in the block [UI], the key MN_valid is found. The keys MN_show and MN_hide can be added if you want to restrict the possible functions.

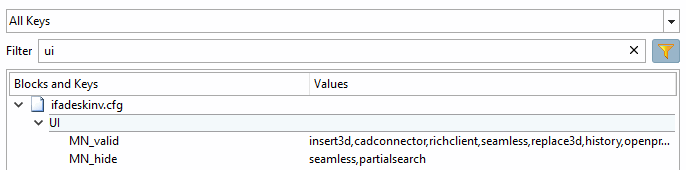

Example Inventor

Example Inventor

  • MN_valid: All possible functions of respective CAD system

  • MN_show: Displayed functions

    If the key is not set, all possible functions are displayed. If certain keywords are specified, exactly these functions are displayed.

  • MN_hide: Hidden functions

Details on this can be found under Abschnitt 2.2.3, „Steuerung der Sichtbarkeit von Funktionen (Buttons)“.
