3.1.16.1.5.1.  Exploded view

The exploded view can be called up both via the toolbar and via the menu.

The command is only active for assemblies.

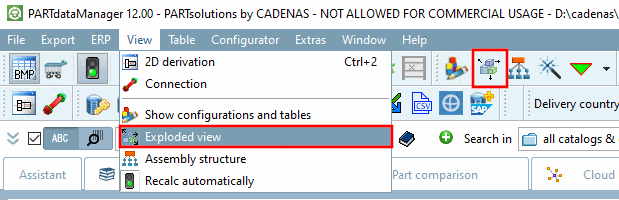

Exploded view in "View [View] " menu and "Assembly " toolbar

Exploded view in "View [View] " menu and "Assembly " toolbar

The exploded view [Exploded view] shows the "drifted apart" representation of an assembly.

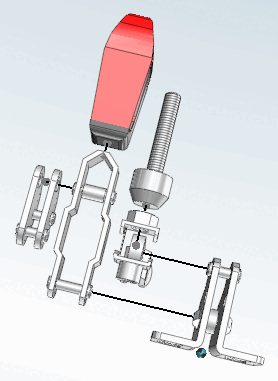

Assembly in exploded view [Exploded view]

Assembly in exploded view [Exploded view]

Set the desired display criteria in the same dialog box.

Exploded view " dialog box

Exploded view " dialog box

  • Reference lines: ...shows the relationships between the individual components using lines.

  • Automatic zoom: ...moves the component into the center of the window during the explosion with the largest possible display.
