3.1.16.2.6.11.  Settings...

Via Extras menu -> Settings [Settings...]... to open the dialog box of the same name.

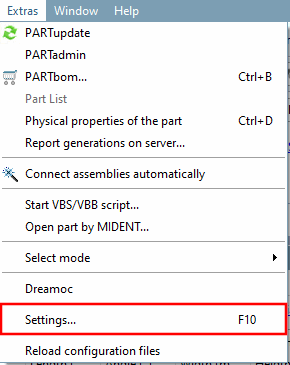

Menu Extras -> Settings [Settings...]..

Menu Extras -> Settings [Settings...]..

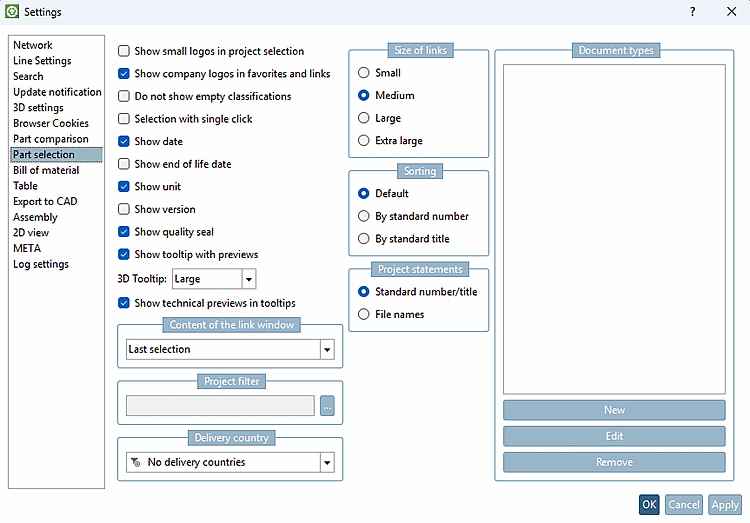

Settings dialog box

Settings dialog box

  • Table

  • Bill of material

  • META

  • Assembly

  • Colors

  • Log settings

  • 3D settings

  • Part selection

  • Network

  • Export to CAD

  • Administrator

  • 2D view

  • Search

The Settings dialog page with all subpages (see adjacent list) is described in detail at Section 3.3, “ Settings... ”.

[Note]Note

  • Every change made here is - until the next change - the default setting for future program calls!

  • Settings in the Settings dialog box have priority over the settings in the part view [Part view] itself (transparency, edge display, etc.)!
