2.3.8.2.2. Block [CadDocumentAttributes] - Transfer custom attributes
2.3.8.2.2.1. User defined attributes with type declaration
2.3.8.2.2.2. Adding new keys

Attributes that are declared in the CadDocumentAttributes block in PARTadmin appear in Creo as user-defined attributes under Parameters in a list with the standard attributes.

SUPPLIER=?GetObject("iface.calcnameservice").start(0).Format("<CATALOG>").value()
ARTICLENO=?_ATTR("NB")
BOMINFO=?_ATTR("LINA")
CREATOR=?GetObject("iface.calcnameservice").start(0).Format("CADENAS GmbH").value()

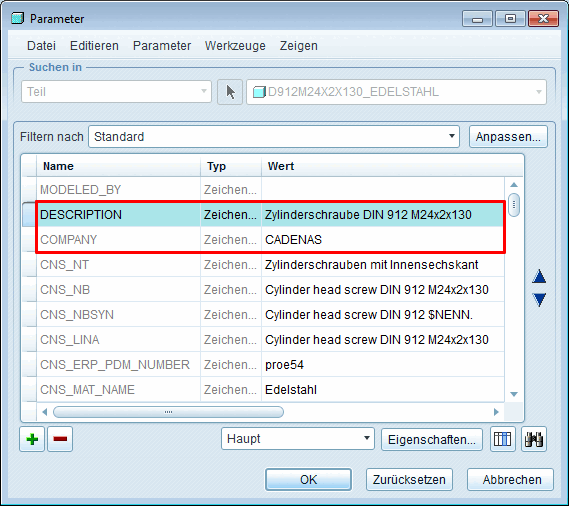

Creo: Parameter - Attributes from "CadDocumentAttributes"

Creo: Parameter - Attributes from "CadDocumentAttributes"
