1.2.1.1.3. Connection points hidden in the 3D view

In the 3D view, the connection points are no longer displayed by default.

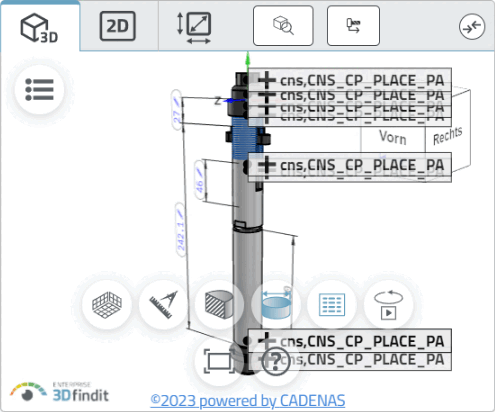

View of the CP before the change

View of the CP before the change

Classified connection points are still displayed via the Show texts and classes button. The display of connection points can be switched on again using the configuration file. For more information, see the chapter Section 4.21.3.4, “Show connection points ” in ENTERPRISE 3Dfindit (Professional) - Administration.
