The pattern wizard makes it easy to create, edit and delete circular [Circular Pattern] and rectangular [Rectangular pattern] patterns. It is also compatible with older versions, as no new features are used.

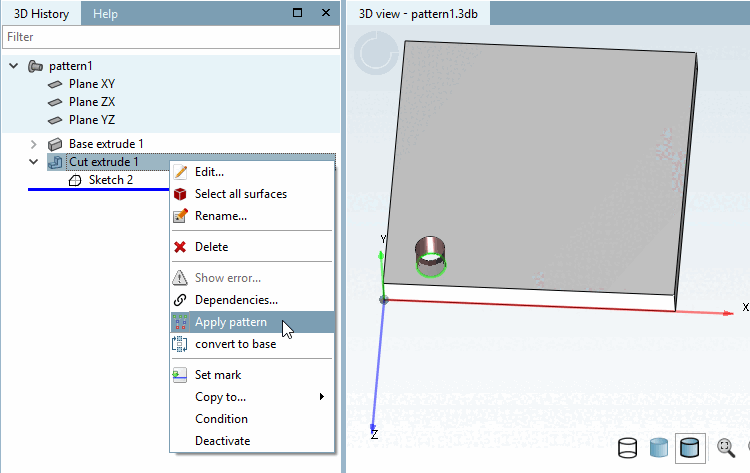

Select the base element of the pattern (here "Cut extrude 1") and click on the context menu command Pattern [Apply pattern].
-> The pattern generation [Pattern creation] docking window opens.

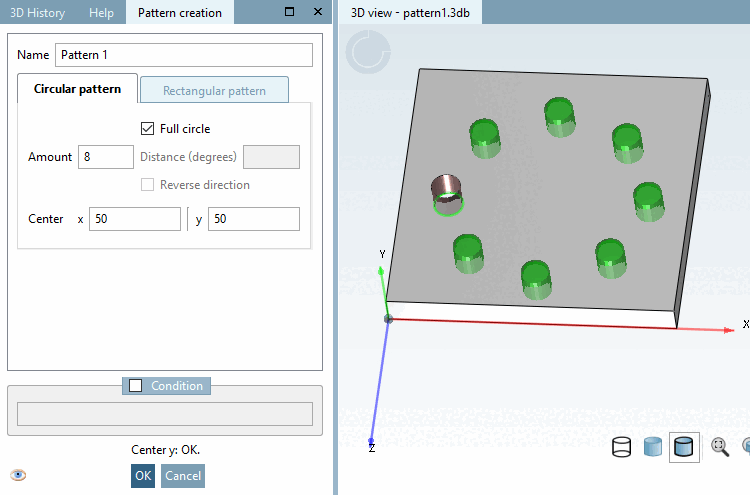

Select the center [Center] to match the base element.
Determine the number [Amount] of pattern elements.
By default, a full circle is created.

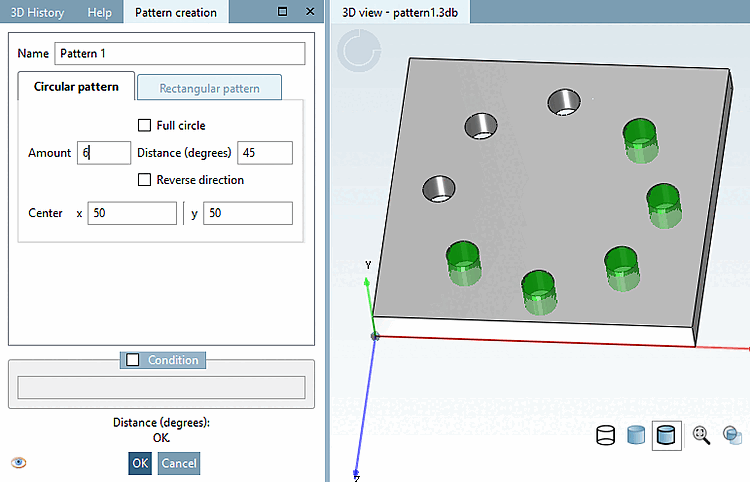

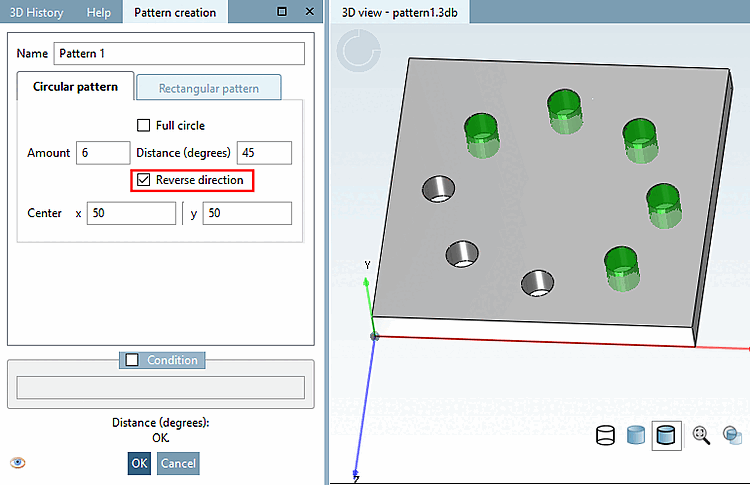

You can also deactivate the Full circle option, define the spacing angle under Spacing (degrees) [Distance (degrees)] (for 8 elements in the full circle, this is 45°) and reduce the number of elements.
You can also reverse [Reverse direction] the direction [Reverse direction].

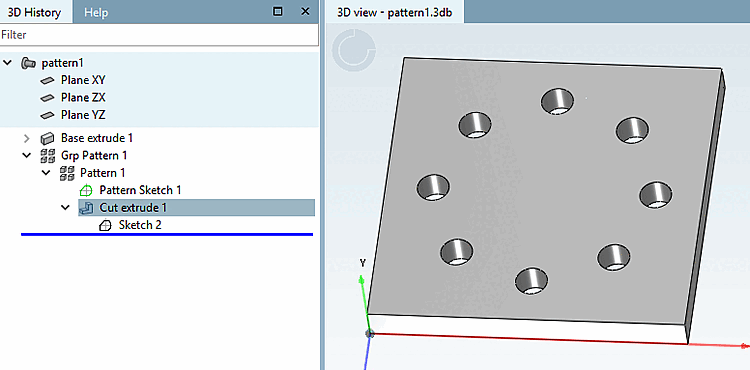

-> The circle pattern is displayed in the 3D history [3D History] under Grp Pattern.

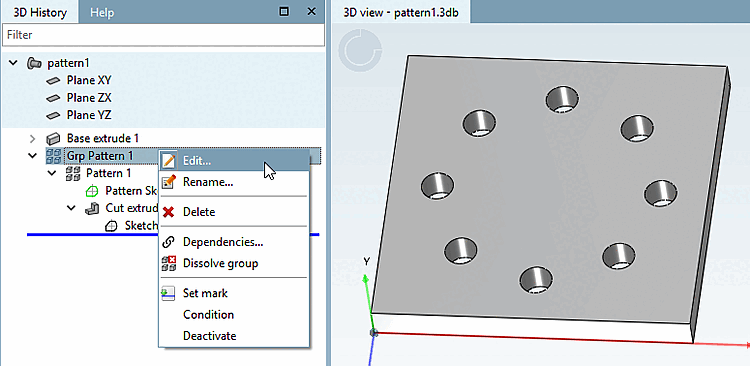

To edit an existing pattern again, select Grp Pattern and click on Edit.... [Edit...]
![[Note]](https://webapi.partcommunity.com/service/help/latest/pages/en/3dfindit/doc/images/note.png) | Note |
|---|---|

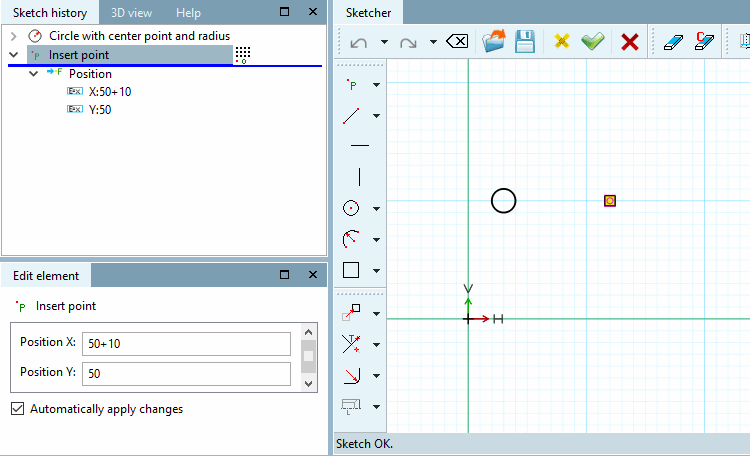

The pattern base element (here Sketch 2) automatically has the
| |

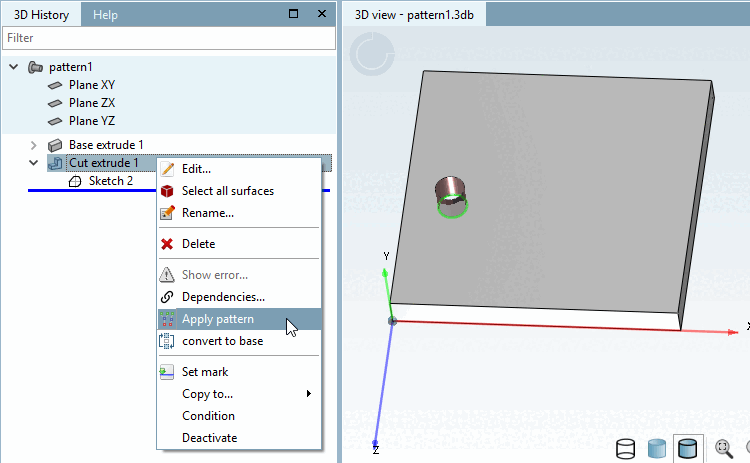

Select the base element of the pattern (here "Cut extrude 1") and click on the context menu command Pattern [Apply pattern].
-> The pattern generation [Pattern creation] docking window opens.

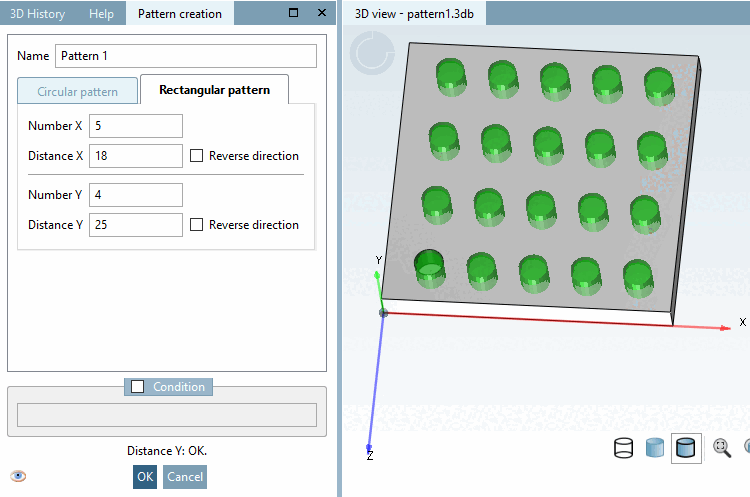

Select the Rectangle pattern [Rectangular pattern] tab page.
Under Number X, determine the number of pattern elements in the X direction.
Under Distance X, determine the distance between the pattern elements in the X direction.
Under Number Y, determine the number of pattern elements in the Y direction.
Under Distance Y, determine the distance between the pattern elements in the Y direction.
With Reverse direction, the individual elements are arranged in the opposite direction of the axis.

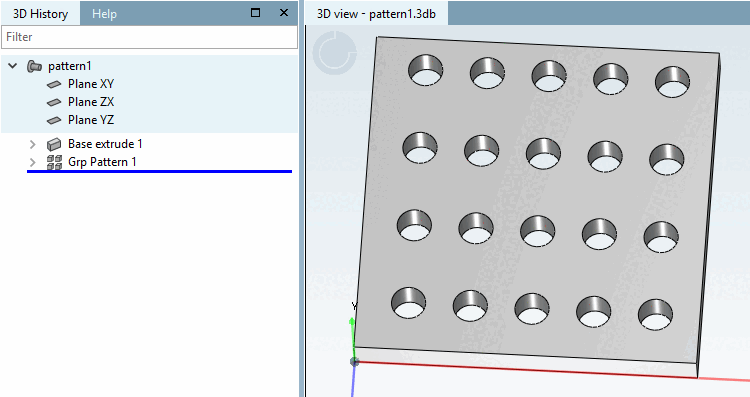

-> The rectangular pattern is displayed in the 3D history [3D History] under Grp Pattern.
To edit an existing pattern again, select Grp Pattern and click on Edit.... [Edit...]
