1.3.7.1.3.  "Symbols " Display mode

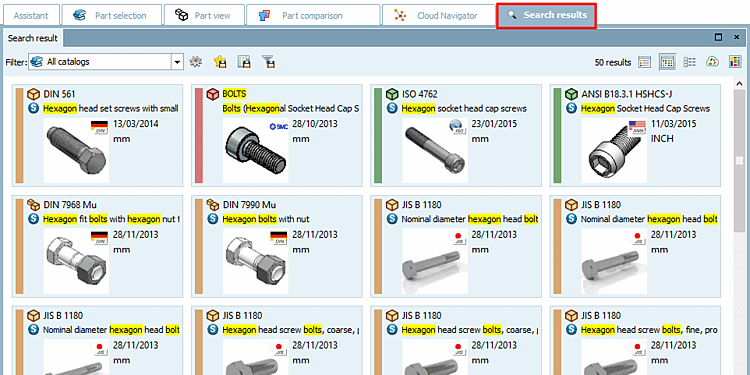

In mode Symbols mode, large preview images and the most important information are displayed.

Symbols " mode

Symbols " mode

Mouse over the preview image to display a tooltip with a 3D view [3D view] + technical information [Technical details], see above.

[Note]Note

Whether the superordinated project (part or assembly) or a certain characteristic is displayed you can recognize at the respective icon:

  • | Part or assembly

  • Certain characteristic
