5.3.7.  Export condition

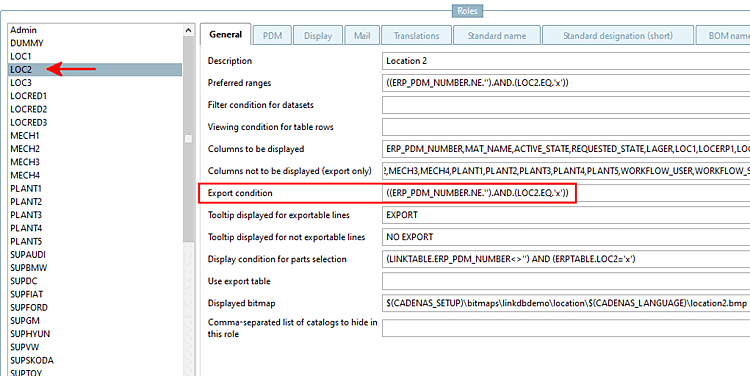

The export condition for LOC2 and LOCRED2 is the same:

((ERP_PDM_NUMBER.NE.'').AND.(LOC2.EQ.'x'))

  • The ERP_PDM_NUMBER must not be empty

    AND

  • The LOC2 or LOCRED2 column must have the identifier ' x '.

If both conditions are fulfilled the export is possible.

[Note]Note

In this example with the extended traffic light circuit, not only is the export option controlled; the status symbol also has an information function, whereby the export condition [Export condition] on the General tab page and the condition [Condition] for displaying the individual traffic light colors on the Bitmaps tab page are interlinked.

For details see Section 7.1.7, “ Export condition - plinkgroups.cfg -> Block [role name] -> Key "EXPORTRESTRICTION" ”.
