1.4.1.4.1.10.  Edit class system: New context menu commands

There are new context menu commands in the Edit class system dialog:

  • Copy class

  • Cut class

  • Insert class

  • Insert class at root level

The following icons are also new (with the same functionality behind them):

  • Create new class system...

  • Current class system change... [Change current class system...] opens the dialog page of the same name.

    On the Display tabbed page, the Sort classes option can be used to activate or deactivate automatic sorting of the classes for each classification.

  • translations in the Changing the class system... [Change translations in the class system...]:

  • New feature... [New class variable...]

  • Edit features... [Modify class variable...]

  • Delete feature [Delete class variable]

  • Alphabetical sorting

  • Numbering

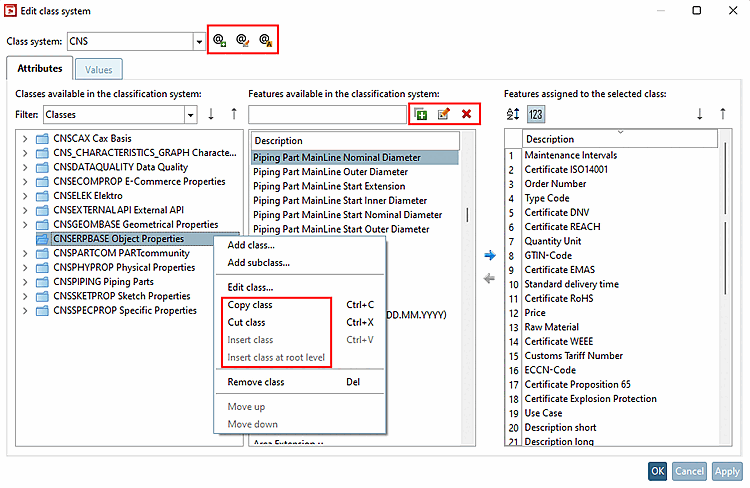

Edit class system from V12.8

Edit class system from V12.8

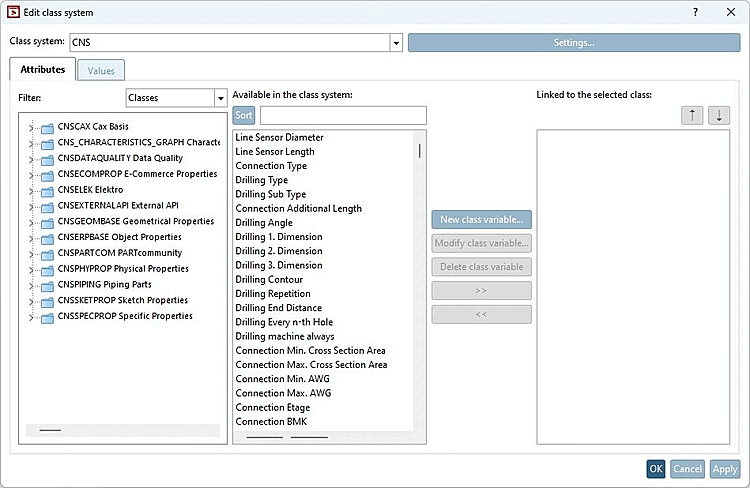

The following illustration shows the "old" status up to V12.7 for comparison.

Edit class system up to V12.7

Edit class system up to V12.7

You can find details on this under Section 5.12.12, “Create or edit your own class system ” in eCATALOG 3Dfindit.
