Note This feature is only officially available for future versions and is only an internal testing version with V12.

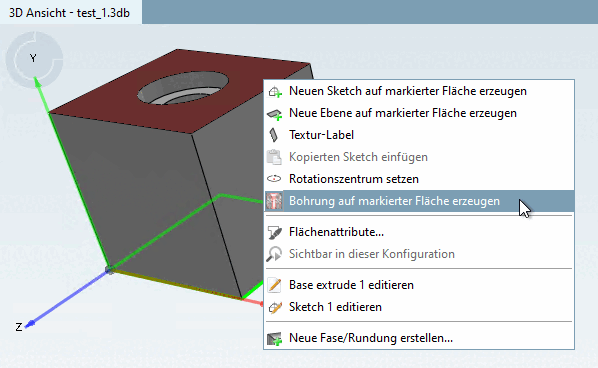

The tool is called up in the 3D view on any surface using the context menu command Create hole on selected surface [Create drill on selected surface].

Drill feature - Call

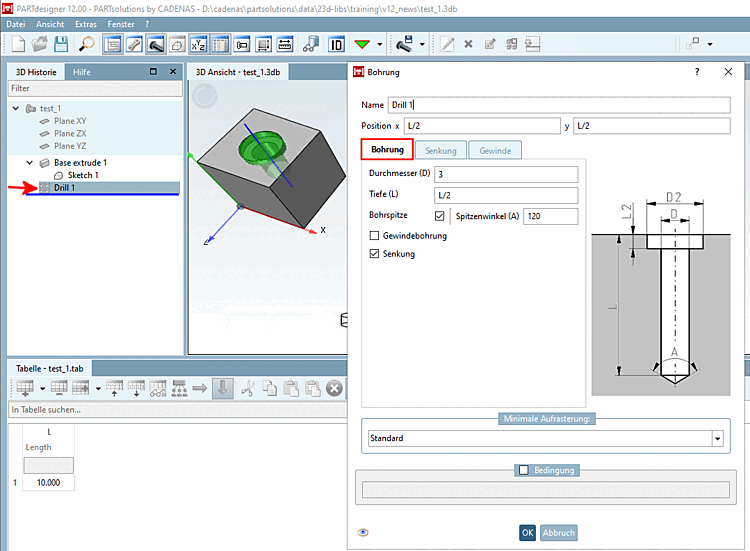

-> The Hole [Drill] dialog box with the Hole [Drill], Countersink and Thread [Threads] tab pages opens.

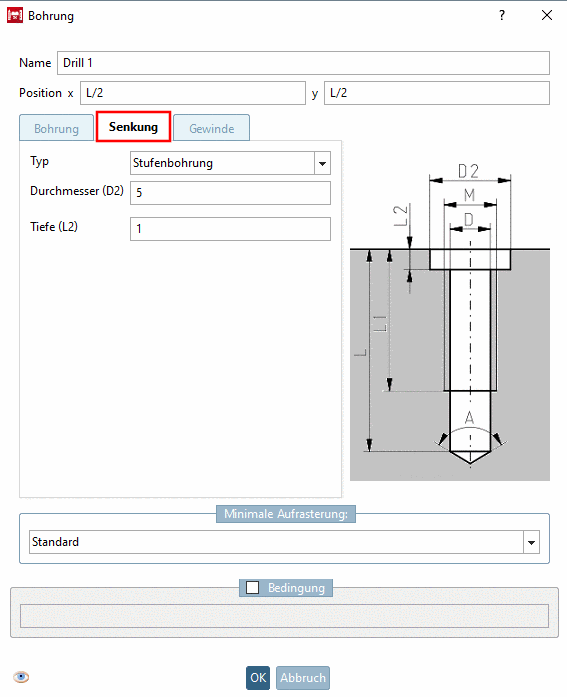

Lowering [Countersink] " tab page

Thread [Threads] " tab page
