5.5.1. Text search

5.5.1.12. Number search for area

If you are looking for arange of numbers and the search is actually set as number search, you must use the search string in square brackets, e.g. D=[10-14]. If you use the brackets omit, a textual search will be performed.

Examples:

```
D=[10-12]
[10-20]
```
3Dfindit: Set area in brackets
Square brackets are already used in the number search with units, so the two options can also be combined.
```
D=[1-2 inch]
```
Note
There must be a space between the number and the unit.

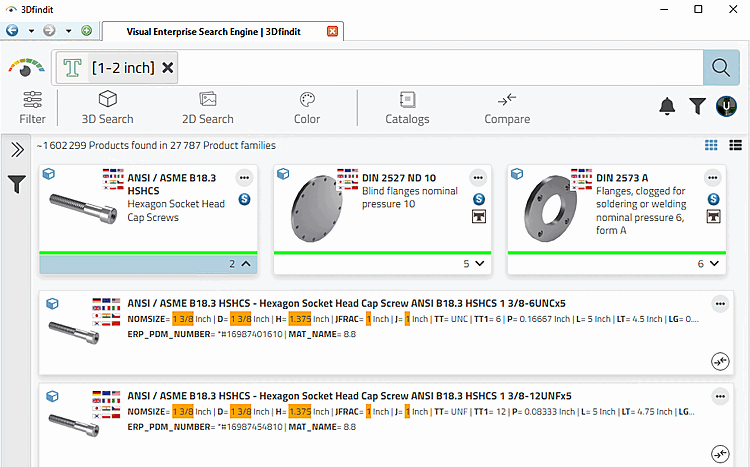

3Dfindit: Result in inches
Further examples:
```
[10-20 mm]
30[mm]
[10 mm]
```
