The table of a Project can now be saved not only in CSV format, but also in XLSX format can be saved. To mark the occasion, the tooltip and the Dialog Box Renamed to As Table File store [Save as table file]. If you have a spreadsheet file ( *.tac or *.tab ) in the PARTproject , you can via the As Table File button or [Save as table file] via File → Save as Table File [Save as table file] dialog box open.

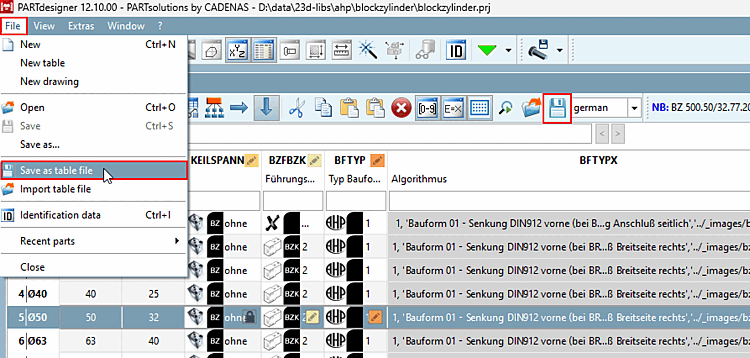

the two options for opening the Write table file window

"Write table file [Write table file]" window with complete selection

You can select the format in the File path area.

In addition to the previous functionality, up to three separate files can now be generated depending on the selection in the Variables area. This is because you can now output not only fixed values [Fixed values] but also value range variables [Value range variables] and characteristic algorithms [Attribute algorithms]. If value range variables [Value range variables] and / or characteristic algorithms [Attribute algorithms] are not selected, the corresponding file paths and selection fields are grayed out.

Further information on this can be found in the chapter Section 7.12.16, “ Save as CSV file ” in eCATALOG 3Dfindit.
