1.2.1.3.2.7. Sketcher - Delete buttons added

The individual delete variants in Sketcher now each have their own button instead of being available only via context menus and shortcuts as before. This simplifies deletion and makes the different variants clearer.

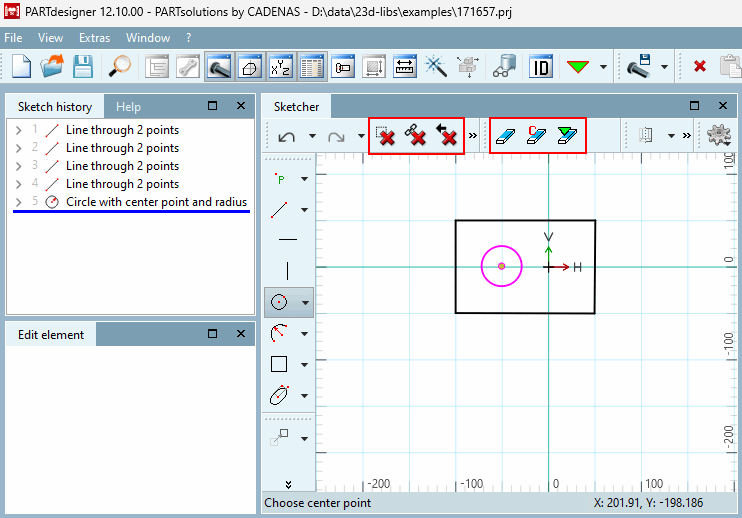

Overview of the new delete buttons

Overview of the new delete buttons

The following deletion options are now available as buttons:

  • Selected Step delete [Delete selected step]

    Removes any step from the sketch and the history.

  • Selected step with Delete dependent elements [Delete selected step with dependent elements]

    Removes any step and all dependent steps from the sketch and the history.

  • Final Step delete [Delete last step]

    Removes the last step from the sketch and the history.

  • element delete [Delete element]

    Adds the Delete element step as a dependency to the selected step in the history.

  • element conditional delete [Delete element with condition]

    Adds the Delete element step to the history as a dependency for the selected step. The element is removed for all subsequent steps if the condition is met.

  • All items except CP delete [Delete all elements except CP]

    Adds the Delete element step as a dependency to all elements in the history, except for connection points. In the sketch, all elements for the subsequent steps are removed. Attachment points remain.

Detailed information on the buttons can be found in the Section 7.9.3.3, “Delete ” in eCATALOG 3Dfindit chapter.
