In the Sketcher of PARTdesigner, DXF imports can now be imported with the line style. Previously it was not possible to adjust the line style after the import. If you now select the Apply line style checkbox during import, the line style is imported and displayed in the sketch history [Sketch history]. You can then change it by clicking on the corresponding line.

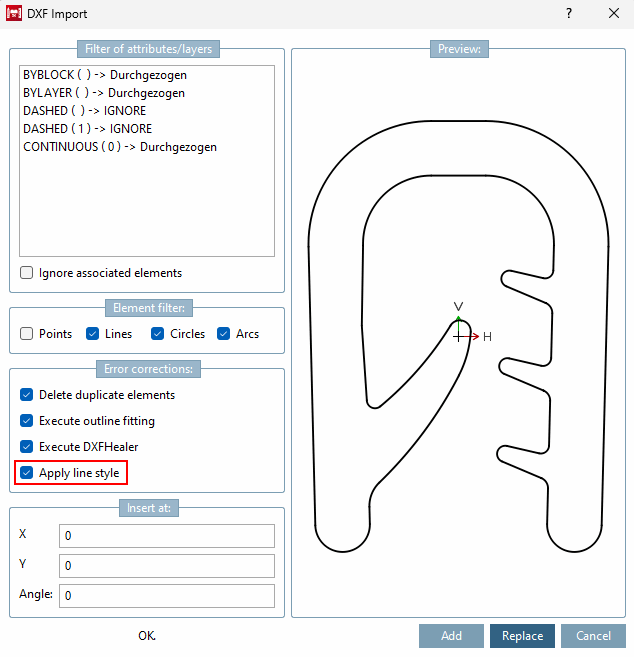

DXF import [DXF Import] with the new option

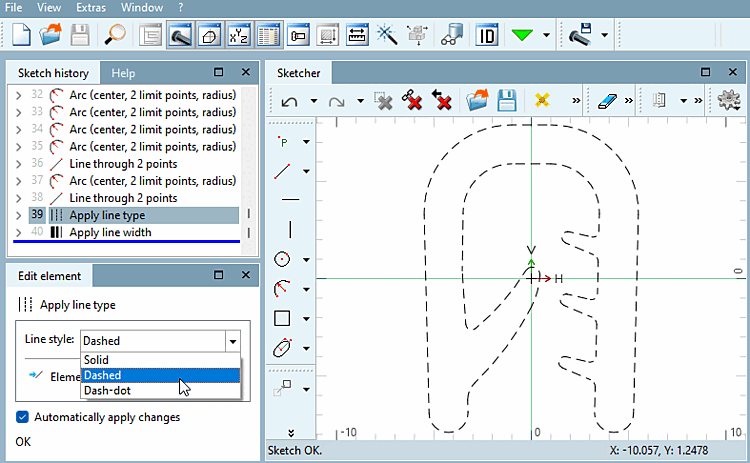

Example of a change to the line type element

Further information on the function can be found in the Section 7.9.3.2.2, “ DXF import " dialog box (*.dxf file) ” in eCATALOG 3Dfindit chapter.
