When moving the mouse over a result line, different buttons are displayed.

	Open:	With click on the icon the part is opened in the Part view of PARTdataManager
	Load as first part	Load part as first part into the Part comparison (so at the same time into the 3D/2D view)
	Load as second part	Load part into the Part comparison (so at the same time into the 3D/2D view)
	Add to part compare	You can load parts into thePart comparison into the 3D or 2D view via icon / .
	Compare to search-part	The chosen part is loaded as second part in a direct comparison to the search part.
	This part is loaded in part compare	As soon as a part is loaded into the part comparison the icon is displayed on the left at the beginning of the line.
	Export to CAD:	This icon is only displayed at single parts (characteristics), not at part families. With click on the icon the respective part is transferred to the CAD system.

For example, click on the button Compare to search-part .

-> The docking window Part comparison is opened.

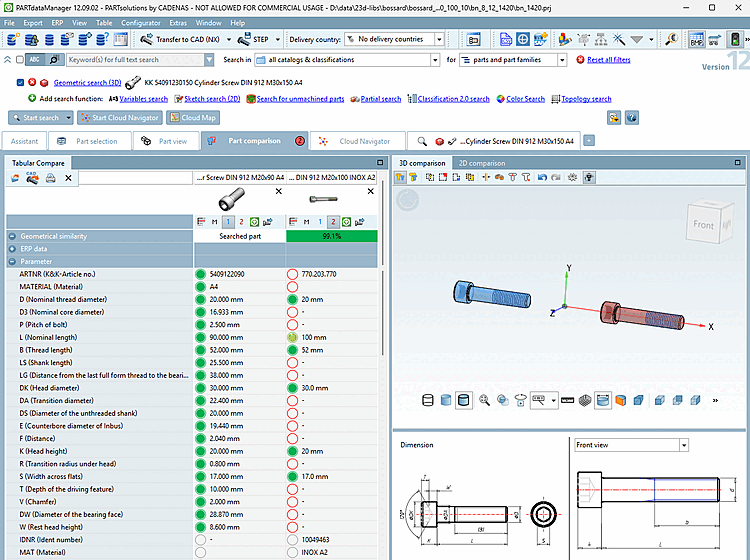

Part comparison

In the Select project line section you can see the characteristic attribute table of search part and part to be compared. At both parts select the same characteristic. You can find detailed information on part comparison under Section 1.3.10, “ Part comparison ”.

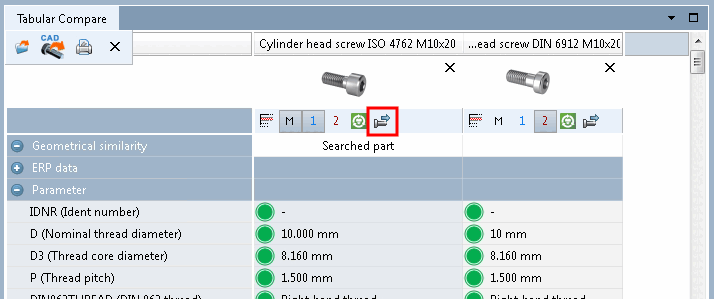

With click on the button Export to CAD you can directly transfer the desired part to the CAD system.
