1.11.1.3.3.4.  TestMeta is executed in its own "QA check " docking window

In V12, TestMeta is executed in an additional docking window " QA-Check ". Advantage: The dialog cannot come to the foreground or be closed accidentally. In addition, you can continue working on other projects during a test run.

  • As soon as the Test project / Test directory command is executed, the QA check [QA-Check] docking window opens. In "All " mode [Mode], all messages are displayed, both warnings/errors and OK.

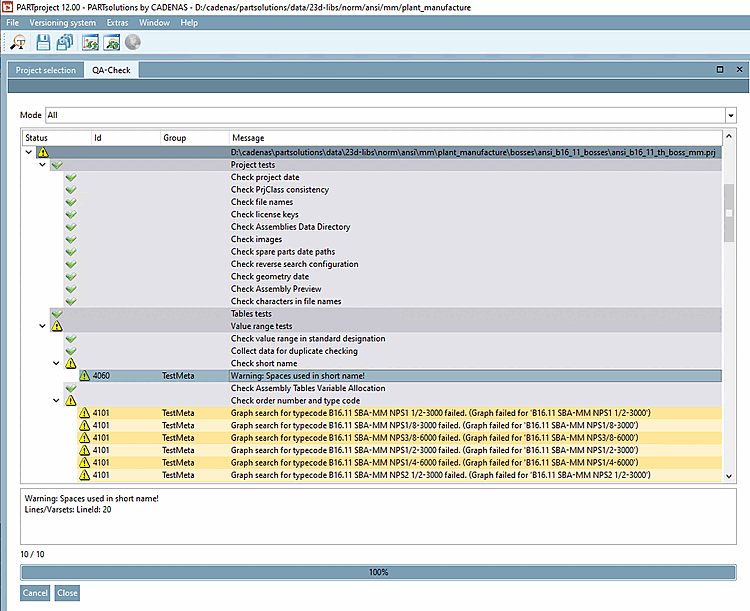

    Docking window "QA check [QA-Check] "

    Docking window "QA check [QA-Check] "

  • While TestMeta is running, the selected directory/project is blocked and appears grayed out.

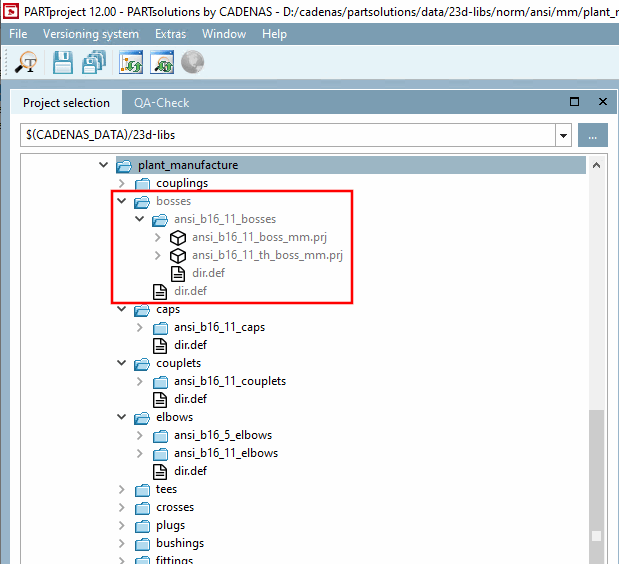

    Docking window "Project selection [Project selection] ": Directory "bosses" blocked

    Docking window "Project selection [Project selection] ": Directory "bosses" blocked

  • To start another TestMeta run, the QA-Check docking window must be closed (same behavior as before).

Details on TestMeta can be found under Section 5.8.2.1.12, “ Test project / Test directory ” in eCATALOG 3Dfindit.
