In the
Configuration file replace_std.cfg
replacement projects.

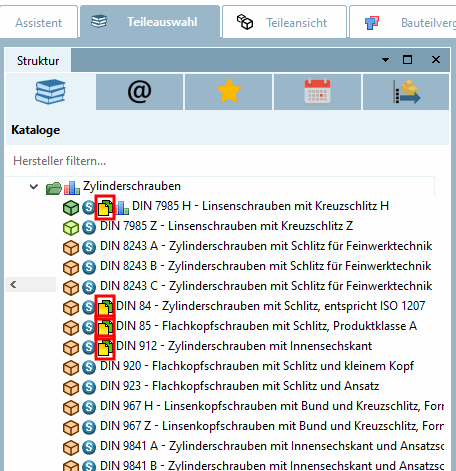

Example: DIN 912 is replaced by ISO 4762.
|
standard/ din_en_iso/ screws/ cap screws/ din_en_iso_4762.prj | ||
|
You can specify additional projects to be listed. These are incremented with NEWx. | ||
Application area for the script
The script can be used for customer projects in which own standard catalogs are used.
That
Script reads the old replace_std.cfg and compares the
Entries with the current catalog status to verify that the paths
under SECTION and under VALUE for each row SECTION-NEW1, SECTION-NEW2,
etc. are correct.
If
not, it searches for the project names. According to the found
correct paths, a new configuration file is replace_std_updated.cfg
applied.
In addition, a log file is created replace_std_updated.log .
This contains a corresponding entry for each line:
The .log is structured as a tabstop-separated CSV file and contains the columns "status", "old" and "new".
The following values are possible for the "status" column
When the script has finished running, the .log can be used to determine which paths were not found, etc.
The script is not available in the installation. If required, please contact the CADENAS consulting team.
See also Section 1.6.3.2, “ replace_std.cfg ”.
