The field Connection name equivalences is used to specify which connection points have the same electrical potential (if any), i.e. those connection points that have a physical (conductive) electrical connection to the currently classified one.

In the CNS classification, this is mapped under the CNS_CP|4|3 (Electrical Connection) class using the identifier and connection name equivalences features.

Identifier and connection name equivalences

Example:

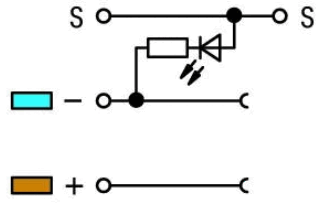

From the electrical diagram above, we see which connection points have the same potential:

We therefore write for S1:

Connection Name Equivalences     |  S2

For S2:

Connection Name Equivalences     |  S1

In the case that there are more connection points with the same potential, for example S1, S2, S3, S4, it would look like this:

For S1:

Connection Name Equivalences     |  S2||S3||S4

For S2:

Connection Name Equivalences     |  S1||S3||S4

For S3:

Connection Name Equivalences     |  S1||S2||S4

For S4:

Connection Name Equivalences     |  S1||S2||S3
