1.3.4.12.3.13.  Linear Hole Pattern

With this function you can search for linear hole patterns.

  • Amount: Amount of patterns in the searched part

  • Amount Width / Amount Height: Number of pattern elements in width and height

    [Note]Note

    In staggered arrangements, the elements of the staggered row are also counted.

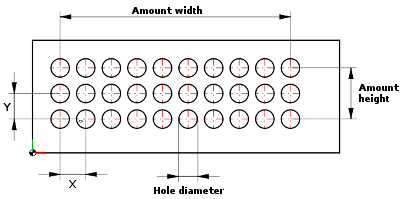

    Example: Width = 10 elements, height = 3 elements

    Example: Width = 10 elements, height = 3 elements

    Distance X / Distance Y:

    Distance between two pattern elements in direction of X and Y axis

    a) Amount Width (here exemplarily 10 elements), b) Amount Height (here exemplarily 3 elements), c) Hole diameter

    a) Amount Width (here exemplarily 10 elements), b) Amount Height (here exemplarily 3 elements), c) Hole diameter

  • Arrangement

    • Straight

      Arrangement: Straight

      Arrangement: Straight

    • Staggered

      Arrangement: Staggered

      Arrangement: Staggered

      [Note]Note

      For staggered patterns not the absolute distance from hole center to hole center is decisive, but the distance in direction of X and Y axis.

Hole Attributes

  • Diameter / Depth

    Diameter and depth

    Diameter and depth

  • Counterbore Type Start:

    None

    None

    Countersink

    Countersink

    Counterbore

    Counterbore

  • Counterbore Type End:

    Through-hole Through-hole Through-hole Blind hole

    None

    None

    Countersink

    Countersink

    Counterbore

    Counterbore
