2.3.7.6.  Block [CadDocumentAttributes]

2.3.7.6.1. Add categories to attribute mapping

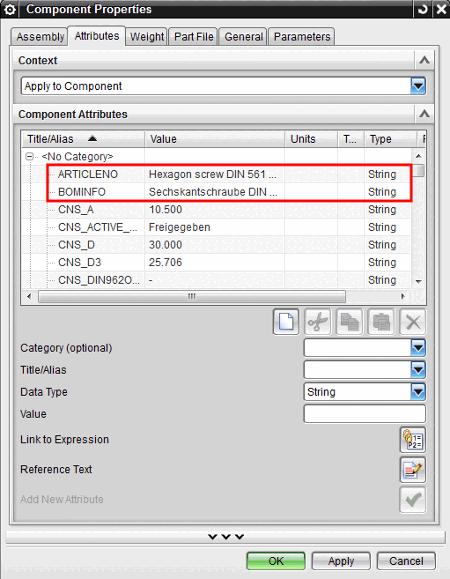

Attributes that are declared in the [CadDocumentAttributes] block are displayed in NX in the Component Properties dialog in a list with the standard attributes.

SUPPLIER=?GetObject("iface.calcnameservice").start(0).Format("<CATALOG>").value()
ARTICLENO=?_ATTR("NB")
BOMINFO=?_ATTR("LINA")
CREATOR=?GetObject("iface.calcnameservice").start(0).Format("CADENAS GmbH").value()
