Chapter 5. PLDBDEMO examples

5.5. User "product_automotive"

5.5. User "product_automotive"

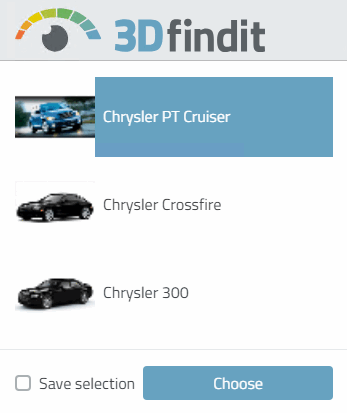

When selecting user "product_automotive" the roles PRODAUTO1-3 are offered.

	Note
	The export condition [Export condition], preferred series [Preferred ranges] and display condition for part selection [Display condition for parts selection] are set identically.

This user has the following particularities:

Column view
At each role selection the columns "PCTAUTO1-3" are displayed.
Columns to be displayed:
```
ERP_PDM_NUMBER,MAT_NAME,ACTIVE_STATE,REQUESTED_STATE,PCT_AUTO1,
PCT_AUTO2,PCT_AUTO3
```
Export condition
The export is only possible if in the car model column belonging to the role the 'x' marking is set and at the same time an ERP number is available.
```
((ERP_PDM_NUMBER.NE.'').AND.(PCT_AUTO1.EQ.'x'))
```
The figure exemplarily shows the role selection "Audi R8". For this role, the marking in column "PCT_AUTO2" is decisive for the status lights
Preferred ranges
When you click the Preferred rows on/off button two things happen:
1. The rows with a red traffic light are hidden based on the condition set under Preferred row [Preferred ranges].
```
((ERP_PDM_NUMBER.NE.'').AND.(PCT_AUTO1.EQ.'x'))
```
2. The display in the directory structure is filtered based on the condition set under Display condition [Display condition for parts selection] for part selection.
```
(LINKTABLE.ERP_PDM_NUMBER<>'') AND (ERPTABLE.PCT_AUTO1='x')
```
  The ERP_PDM_NUMBER must be unequal to empty (meaning available) AND the column PCT_AUTOx must have the 'x' marking.
  Only directories that meet the condition are shown in green.
  For default behavior (no set condition) it is sufficient to have a link in the LinkDB, meaning an ERP_PDM_NUMBER.
