1.7.4.5.2. Block [PARTCOMPARESETTINGS]
1.7.4.5.2.1.  Key "DisplayGeoDistances" - Tabular comparison - Display geometric similarity
Prev  Next
1.7.4.5.2.1.  Key "DisplayGeoDistances" - Tabular comparison - Display geometric similarity

Under $CADENAS_USER/pdatamgr.cfg you can set whether the geometric similarity should be displayed in the Tabular comparison [Tabular Compare] dialog area.

[PARTCOMPARESETTINGS]
DisplayGeoDistances=1

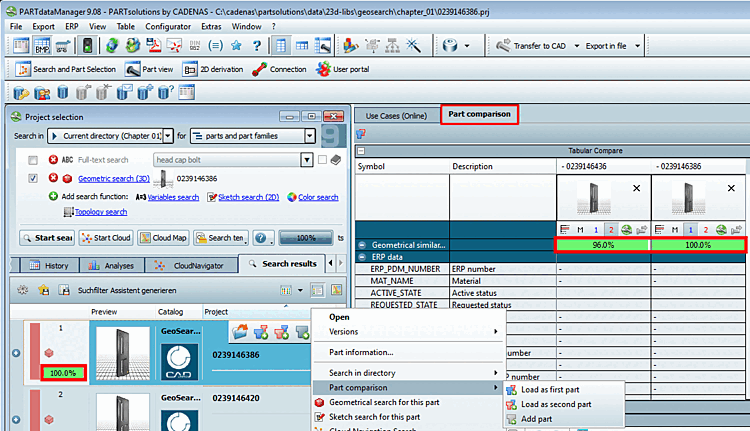

Component comparison [Part comparison] -> Tabular comparison [Tabular Compare] -> Geometric similarity [Geometrical similarity]

Component comparison [Part comparison] -> Tabular comparison [Tabular Compare] -> Geometric similarity [Geometrical similarity]
