1.1.1.4.1.2. Button "3D search" in the search result context menu

You can call up a GeoSearch from the context menu of any part.

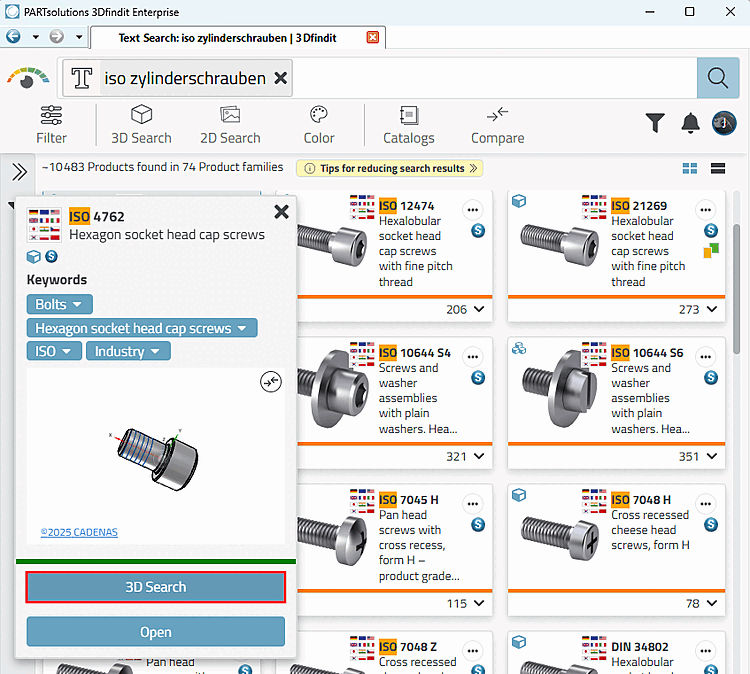

  1. Initial situation: A number of products are displayed that you have determined using any method. In the example below, a search was carried out for "iso cylinder screws".

  2. Open with Click on the context menu.

  3. Click on the 3D search [3D Search] button.

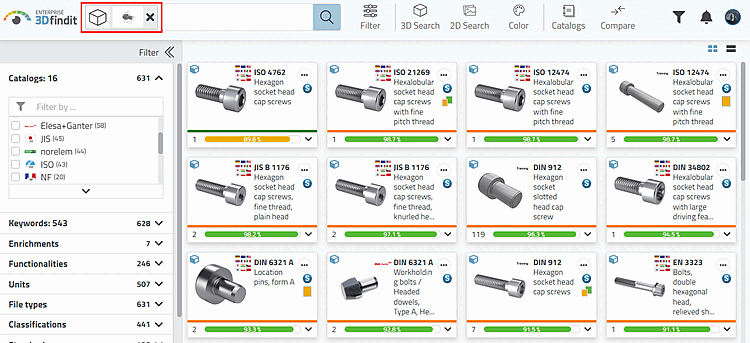

    -> The results are displayed.

    -> All previously selected search methods are deleted. The executed 3D search [3D Search] is now displayed in the search input field.

  4. Optionally, you can now use the facet filter, for example, on the basis of the search results.

Further information on the 3D search [3D Search] can be found under Section 5.5.2, “ 3D Shape Search ” in ENTERPRISE 3Dfindit.
