1.3.11.4.  Export to CAD

In order to transfer the part to the CAD system proceed as follows:

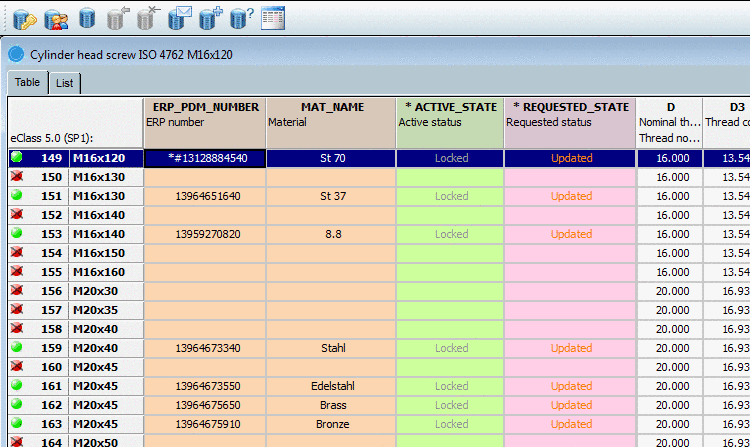

  1. Open the context menu of the respective part.

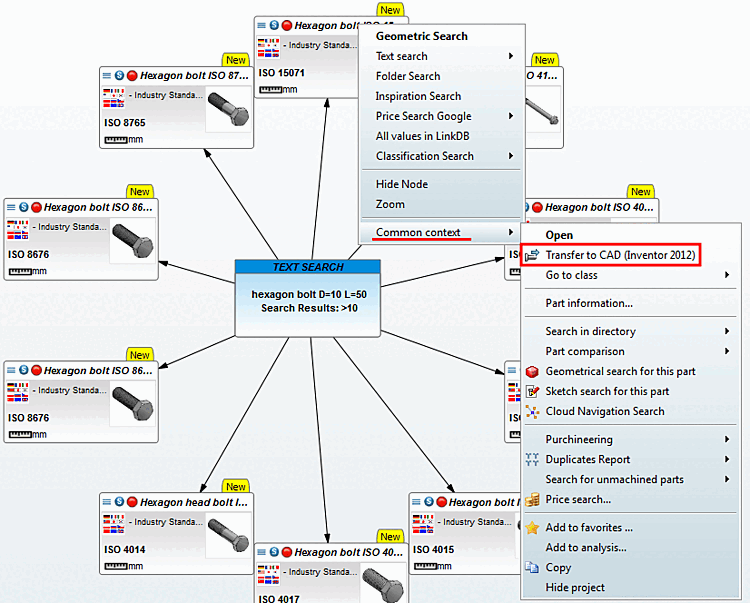

  2. Under General context [Common context], click on the Transfer to CAD [Export to CAD] command.

    Alternatively, you have the option of first opening the part in the Part view and then export it as usual.

    In this case, click on Open under General context [Common context].

    -> The part is opened in the Part view is opened.

    Export the part as usual.
