1.3.4.12.3.8.  Sphere

With this you can search for spheres or sections of spheres such as semi-spheres or rounded edges, for example.

  • Number: Number of balls in the searched part

  • Diameter: Ball diameter

  • Orientation:

    • Inner

      Partial sphere - Orientation: Inside

      Partial sphere - Orientation: Inside

    • Outer

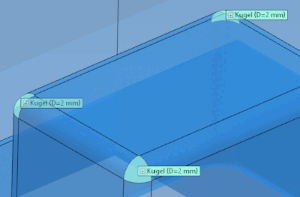

      Partial sphere - Orientation: Outside

      Partial sphere - Orientation: Outside
