The search results of a topology search [Topology search] appear as usual on the corresponding tab page. The tab shows the corresponding symbol .

The following figures show the results of a combination search for "bolt" (full text search [Full-text search] ) and the topological feature hole [Hole].

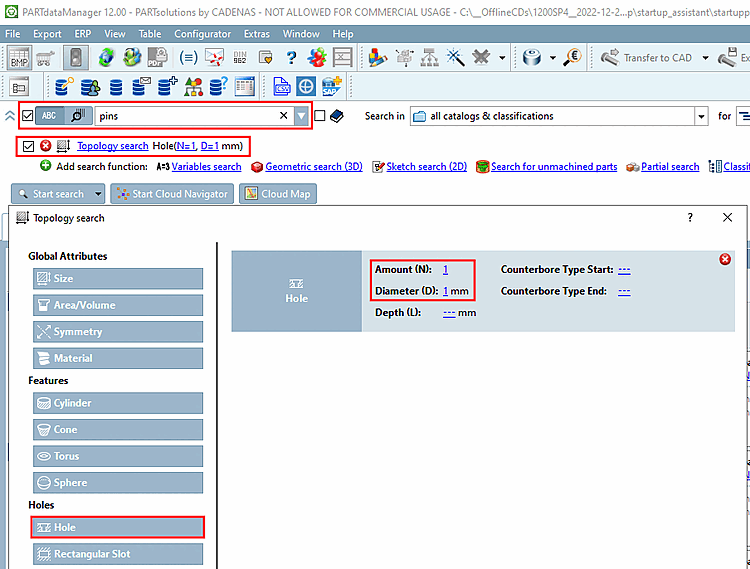

Topology search by hole [Hole]

In a topology search [Topology search], the values found are highlighted in color and displayed in their own table columns.

Table columns corresponding to topological attributes are automatically displayed (but have to be manually sorted to the front).

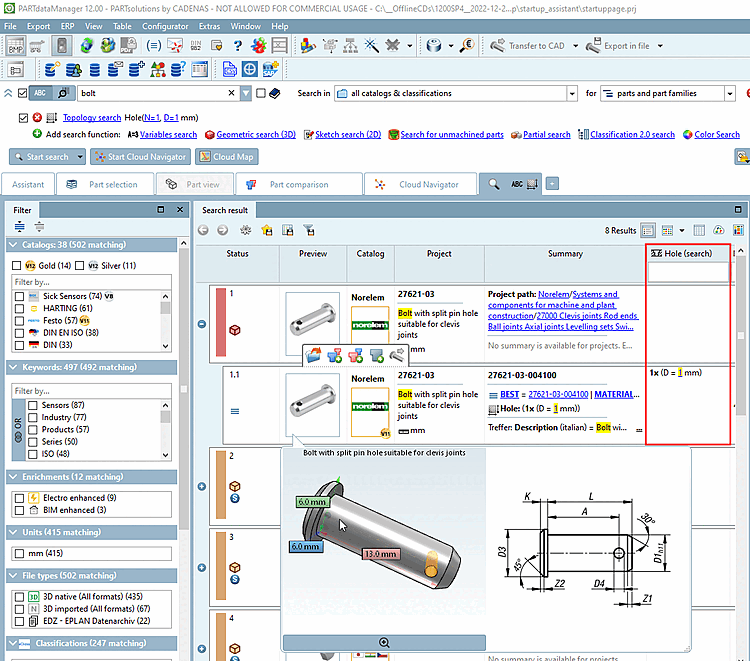

Results bolts with splint hole

Features such as cylinders, cones, etc. that were searched for in the topology search [Topology search] are highlighted in color in the tooltip of the search results and in the 3D view.

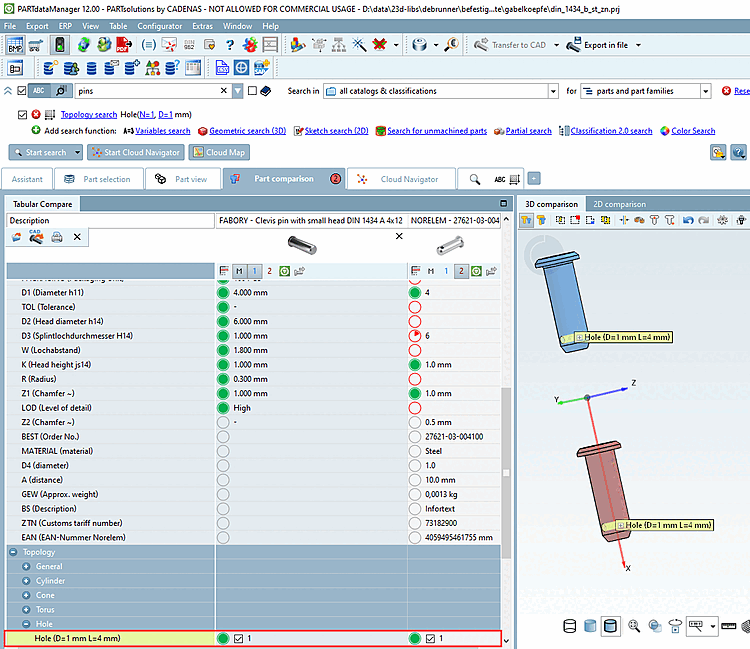

By default, the display of topological information in the component comparison [Part comparison] is switched off. However, when the search results of a topology search [Topology search] are opened, the topological features are already marked under Tabular comparison [Tabular Compare], the corresponding checkboxes are already selected and the corresponding information is also displayed in the 3D comparison.
