All <part>
children are listed here with their specifying child elements.
<part id="..."> <type>part|assembly|drill|pseudo</type> <category>...</category> <color r="0..255" g="0..255" b="0..255" /> <path>...</path> <nnpath>...</nnpath> <bom category="..."> <splittable>...</splittable> </bom> <vars> <var> <value name="name">value</value> </var> </vars> <cp name="..." visible="..." type="..." /> </part>
Identifier referencing
categories
.Sets the path of the .prj-file of the part (&CADENAS_DATA)
Note Use a relative path statement:
Project: C:\programme\cadenas\data\23dlibs\...catalog...name...\rohre\rohr.prj
To define additional variables. It is also used to init the table.
name

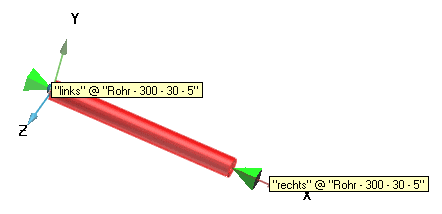

: Name of the connection pointIn the exemplifying picture below the names are "links " and "rechts ".
Note XML syntax with parts: Just the connection point name
XML syntax with assemblies: Part name @ connection point name
visible
: In the Configurator the displayed name of the connection point under Details.
<part id="65humlenk" > <type>assembly</type> <category>transport</category> <path>4_transporttechnik\1_stretch_line_sl\4_baubreite_sl_065\3_umlenkungen \assemblies\2_h_umlenkung_asmcfg.prj</path> <nnpath>4_transporttechnik\1_stretch_line_sl\4_baubreite_sl_065\3_umlenkungen \2_h_umlenkung_asmtab.prj</nnpath> <cp name="HUMLENKUNGWINK@start0" visible="Vorne" type="sl65_start_C" /> <cp name="HUMLENKUNGWINK@end0" visible="Hinten" type="sl65_end_C" /> <bom category="transport" /> <vars> <value name="BAUBREITE">65</value> </vars> </part>
