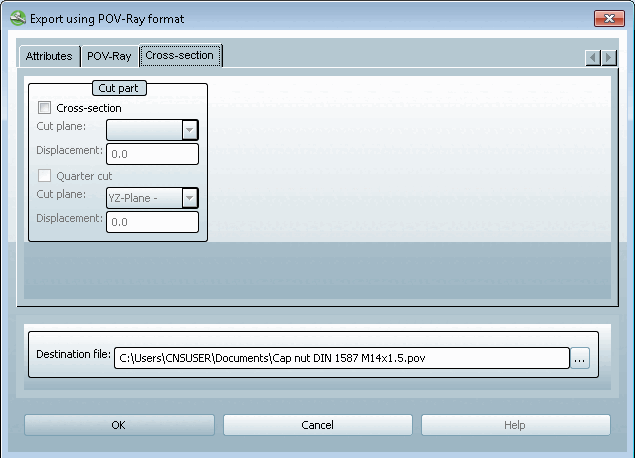

3.1.9.3.4.3.  Cross-section " tab page

  • Cross-section

    Cutting plane [Cut plane]:

    Select YZ plane, XZ plane or XY plane in the list field

    '+ ' or '- ' (mirror-inverted representation of the section)

    Shifting [Displacement] the cutting plane:

    In the input field, enter the desired displacement. (The numerical value corresponds to the measuring unit of the part.)

  • Quarter cut

    To create a quarter section, activate both the checkbox for cross section [Cross-section] and the checkbox for quarter section [Quarter cut].

    The same applies to the settings as for cross-section.

Cross section

Cross section

Quarter cut

Quarter cut
