1.10.1.3.2.9.  3D History: Condition

You can apply the Condition command to several features at the same time. This saves you having to open each individual feature and set the condition there.

Insert condition

  1. Select the desired features.

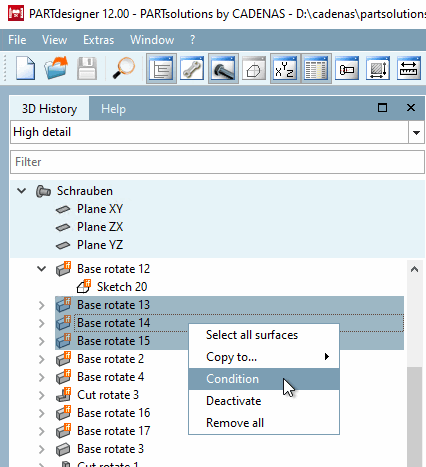

  2. Call up the Condition context menu command.

  3. In the input field, enter the condition.

  4. Confirm with OK.

[Caution]Caution

All possibly already existing conditions are overwritten.

Remove conditions

Click on the Remove conditions button.
