Click on the 2D sketch [2D Sketch] icon.

-> The dialog area opens.

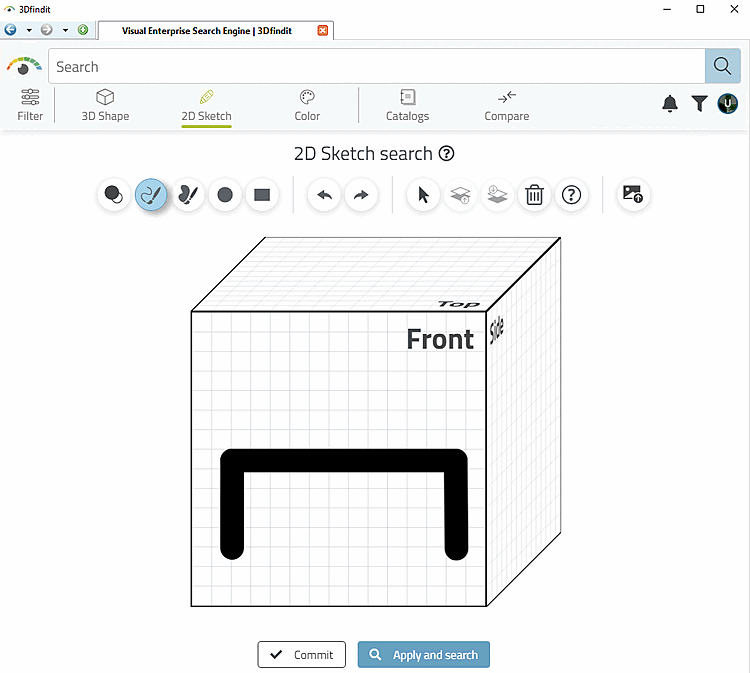

Draw a sketch (one or up to three, depending on the complexity of the component).

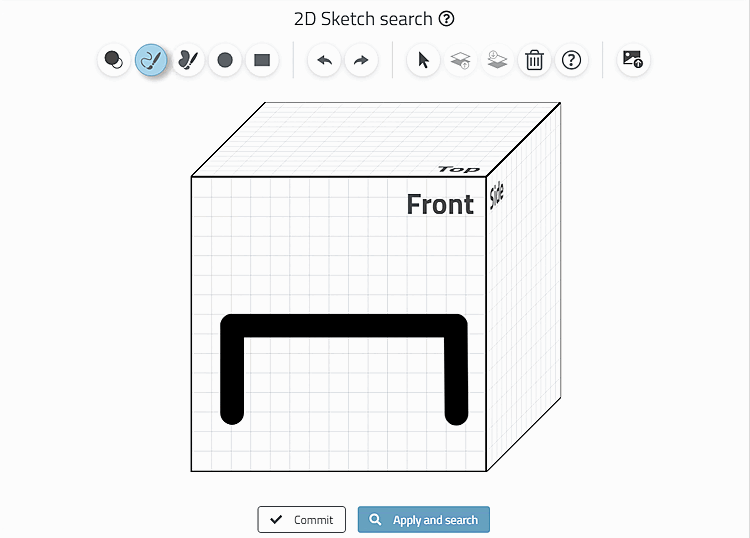

1st sketch

	Tip
	Via Help button [Help] you will find help for the individual Drawing functions. In this case, create the drawing with the brush [Brush] and select a thickness [Strength] of 32. Draw straight lines by holding down the Shift key.

Click Apply and search. Optionally, filter for a specific manufacturer.

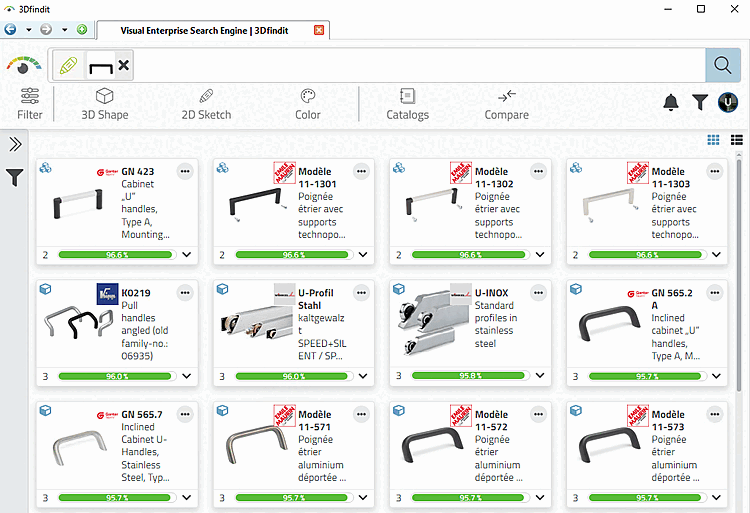

-> The results are displayed.

-> The search parameter (or any number of parameters) is displayed in the search field.

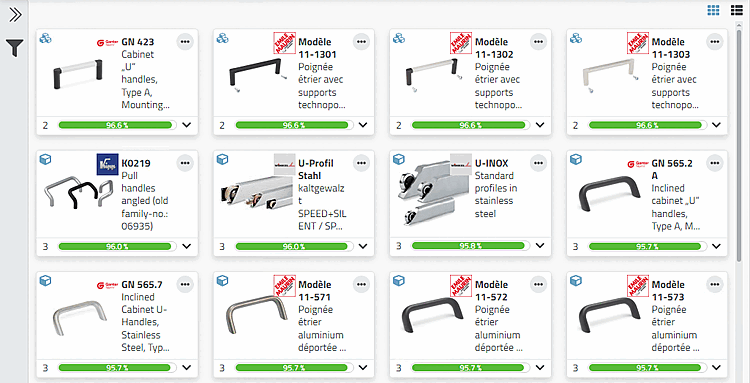

Result with a sketch

Click on Page [Side] and create a second sketch in side view.

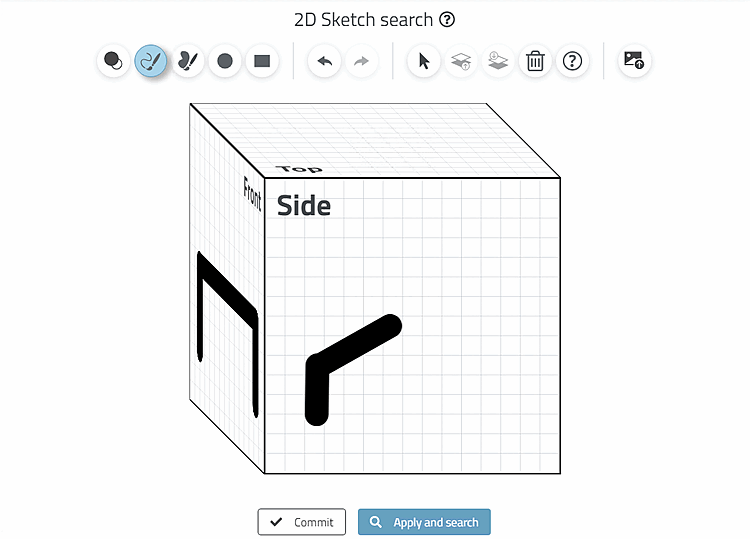

2nd sketch

Click Apply and search.

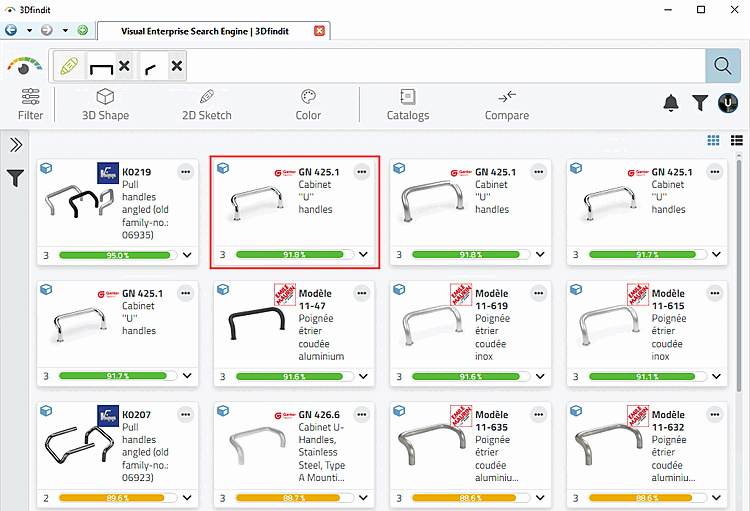

-> The desired result now appears at the very front.

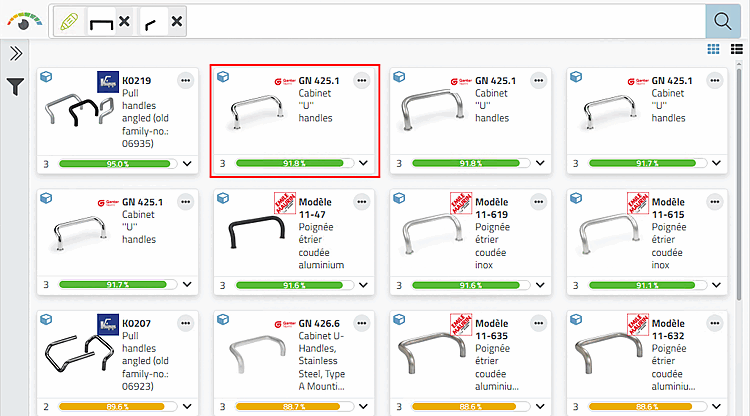

Result with two sketches
