7.7.1.2.3. Example 2 - Overwrite face attributes

Initial situation: On the selected face, two attributes are already set.

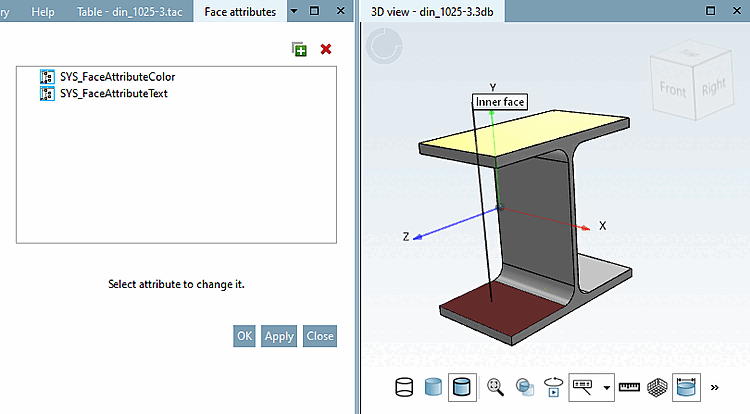

On the selected face, a color and a text attribute is already set.

On the selected face, a color and a text attribute is already set.

[Note]Note

As soon as an area with already assigned attributes is selected again, these are displayed in the Area attributes [Face attributes] docking window.

Now the already assigned text attribute shall be modified and at the same time a new instance be set on another face.

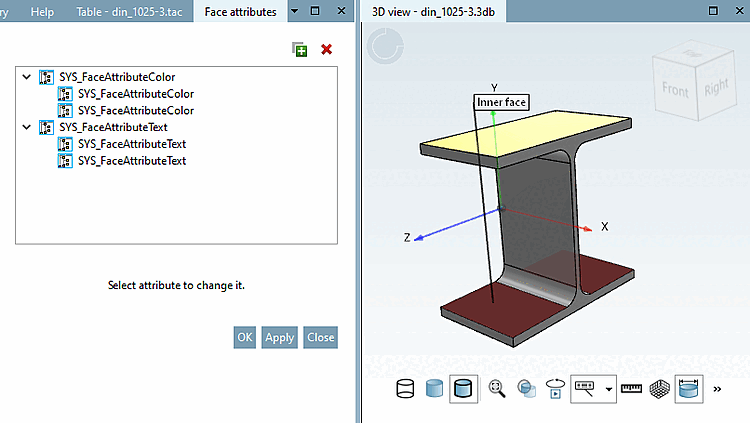

  1. Select the face where the text attribute is already assigned and in addition another face.

    -> Once multiple faces are selected, in the docking window, a tree structure with parent and child elements is displayed.

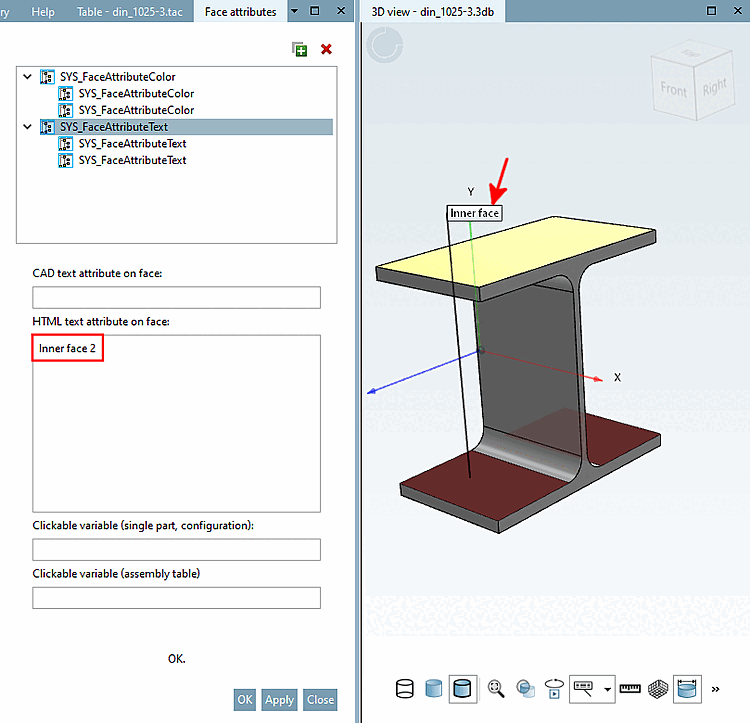

  2. Select the text parent element and enter the modified text under HTML text attribute on area [HTML text attribute on face].

  3. Click Apply.

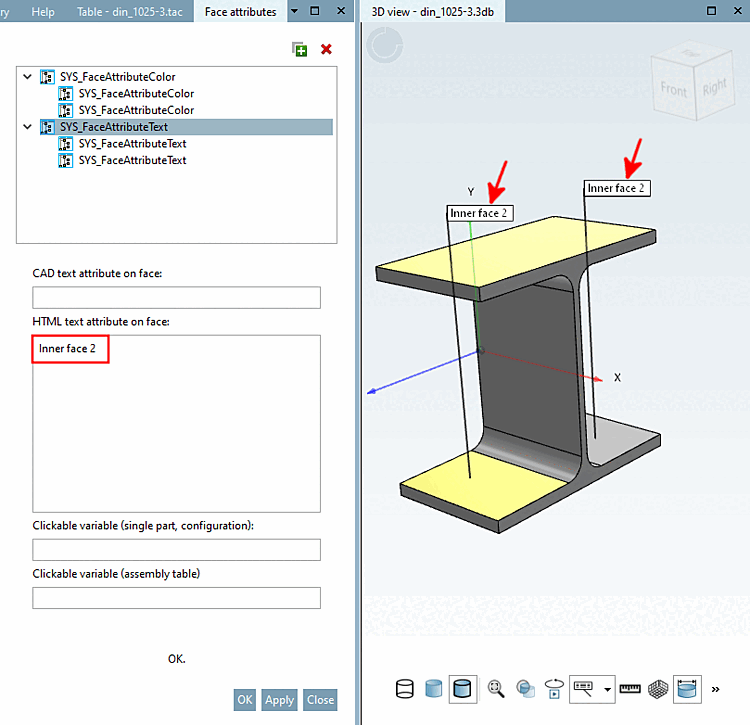

    -> All selected faces get the new value (even if before only one face contained a text attribute). If you explicitly want to change the text attribute of a special face, then best only select this one face.
