7.13.5.7.1.1.  Properties

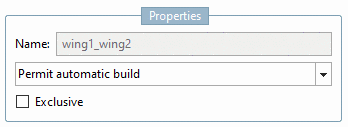

  • Name: The name of a rule must be unique and can no longer be changed after confirmation with OK.

  • Selection field:

    • Forbid autom. build (X)

      ...excludes the part which is created by this rule from the automatic assembly build through the user.

    • Admit autom. build (U)

      ...includes the part (which is created by this rule) in the automatic assembly build (by user).[106]

    • Always build automatically (V)

      ...includes the part (which is created by this rule) in the automatic assembly build.

    [Note]Note

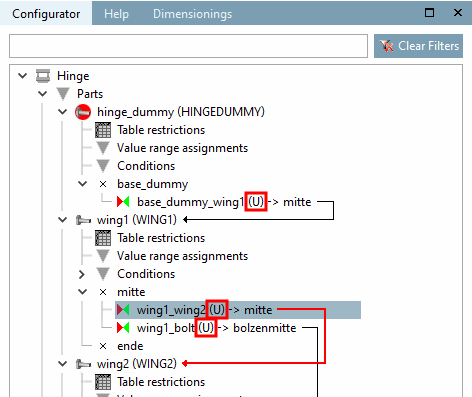

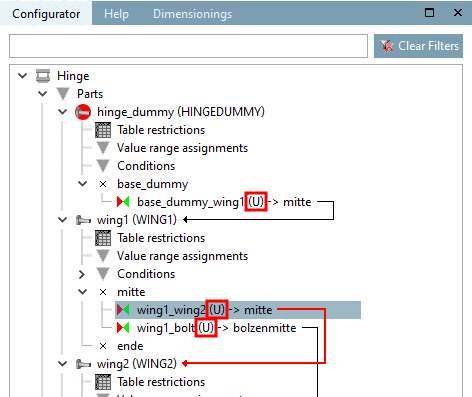

    The abbreviations in brackets in the Configurator docking window indicate the setting used in the list field under Properties.

  • Exclusive: If various alternative parts have been created for a connection point, the individual part can be assigned the "exclusive" property via this option. This means that as soon as this part is selected, the alternative parts are no longer available.



[106] Information on the automatic assembly setup in PARTdataManager can be found under Build assemblies automatically .
