1.6.4.7.3.2.  Keys "LoadGeometryEnabled" and "LoadFromCadEnabled"

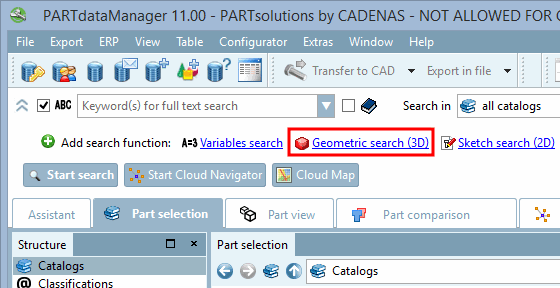

When clicking on Geometric search (3D) the same-named dialog box opens.

Call dialog box "Geometric search (3D) [Geometric search (3D)] "

Call dialog box "Geometric search (3D) [Geometric search (3D)] "

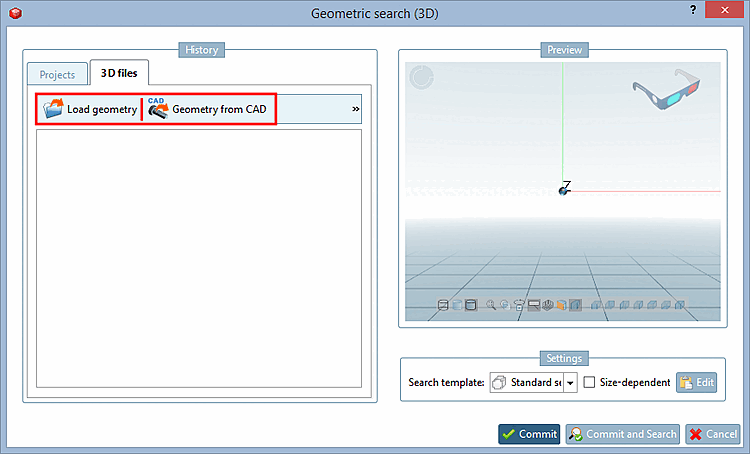

On the tabbed page 3D files you can hide the buttons Load geometry and Geometry from CAD via config key:

  • Load geometry:

    [SettingsSearch]
LoadGeometryEnabled=0

    1: show

    0: hide

  • Geometry from CAD:

    [SettingsSearch]
LoadFromCadEnabled=0

    1: show

    0: hide
