3.5.5.1. ARCHICAD

  • The components must be classified according to "IFC".

  • Parts must be equipped with the CADENAS - ARCHICAD classification. This classification covers objects / categories such as Door / Window, which can be described more detailed by attributes.

    Tree

    Tree

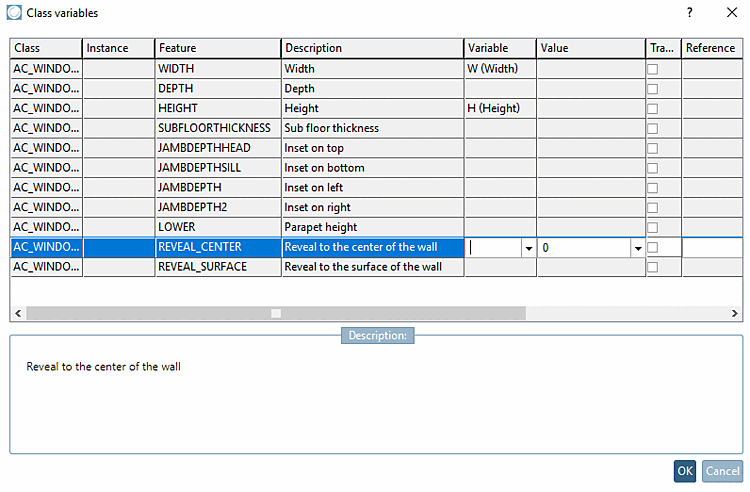

    "Class variables" dialog box

    "Class variables" dialog box
