5.8.2.1.15.18.  Add LOD Variables

In Architecture / BIM catalogs the subject LOG has special importance. In parallel to the stages High / Medium / Low known from the „Mechanical“ field, here, a separate schema in the form of 100 / 200 / 300 / 400 is used.

[Note]Note

In Architecture field, parts should be equipped with a specific LOG schema. Absolutely, please have a look on Section 3.5.2.3, “LOG (formerly called "LOD")” an.

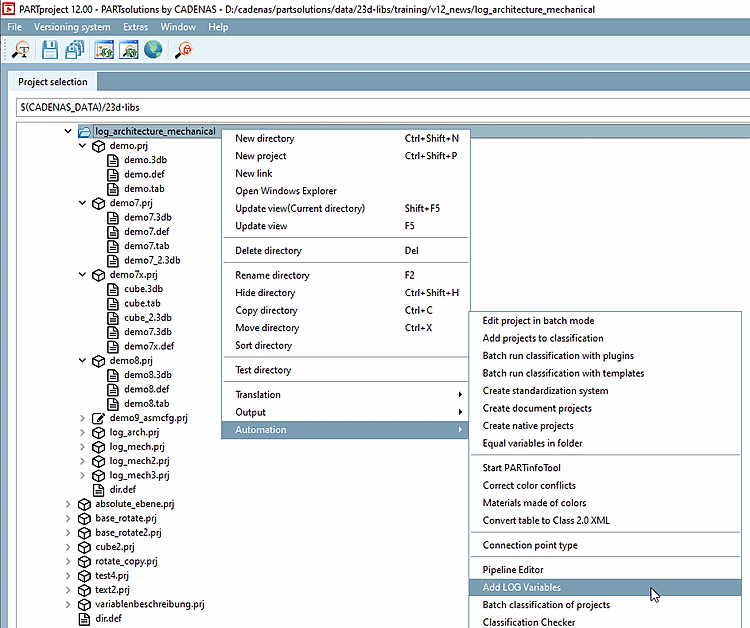

  1. In PARTproject, on catalog, directory or project level click on the command Add LOD Variables.

    [Note]Note

    The command only takes effect when the project is indexed.

    -> The dialog box Add LOD Variables is opened.

  2. Activate the checkbox at the desired variables and confirm with Ok.

    Thereby in PARTdesigner, the following variables are automatically set:

    • LOGDEST (Function attribute)

    • LOG (Function attribute)

    • LOGX (Function attribute)

Details on this can be found under Section 5.9.4.3.5, “Example: Specifics for project creation especially in Architecture / BIM catalogs ”.
