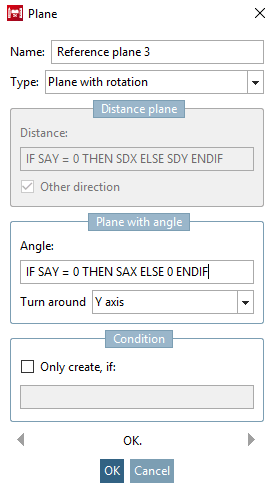

In the variable manager [Variable Manager], add the variables SAX, SAY (start side) and EAX, EAY (end side) for entering the mitre angle ; also SDX, SDY, EDX, EDY with status [Status] feature algorithms [Attribute algorithms] as auxiliary variables for calculating the distance plane [Distance plane] (see figure below).

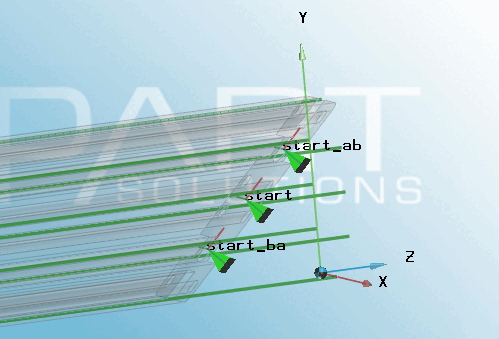

The "End" connection points are created in the same way as described above.


![Variable manager [Variable Manager]](https://webapi.partcommunity.com/service/help/latest/pages/en/installation_ecatalogsolutions/doc/resources/img/img_6d639686dbcb47109e278d74756d121d.png)
![Feature algorithms [Attribute algorithms] dialog box](https://webapi.partcommunity.com/service/help/latest/pages/en/installation_ecatalogsolutions/doc/resources/img/img_ad173b09283146ffb0f52728e2972aff.png)
![Fixed plane 1 - Point of impact [Base point]](https://webapi.partcommunity.com/service/help/latest/pages/en/installation_ecatalogsolutions/doc/resources/img/img_9443622d0c244c69b2d5ce37f879f086.png)

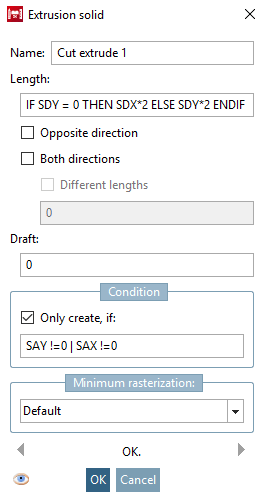

![Extrusion body [Extrusion solid]](https://webapi.partcommunity.com/service/help/latest/pages/en/installation_ecatalogsolutions/doc/resources/img/img_ed22d7105fc74335896df68506d91941.png)
