3.13.1.2.2. Topology search: Sheet thickness as new topological attribute

As of V10 the sheet thickness is a topological standard attribute now. Topological values can be displayed under Search results in an own column.

In the following an example is given:

  1. On the tabbed page Search results, open the dialog box Properties by right-clicking in any column header.

  2. Open the tree and under Topology values -> Size, activate the checkbox at sheet thickness.

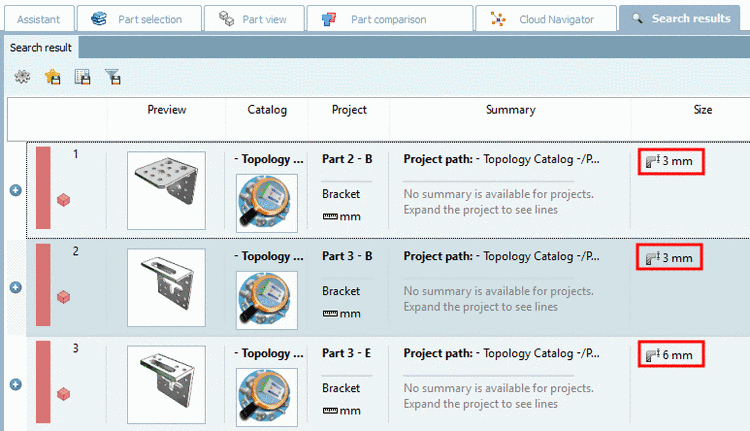

If you perform a search now, in the column Size, the sheet thickness is displayed in addition.

Furthermore you can also see the topological attribute sheet thickness in the Part comparison.
