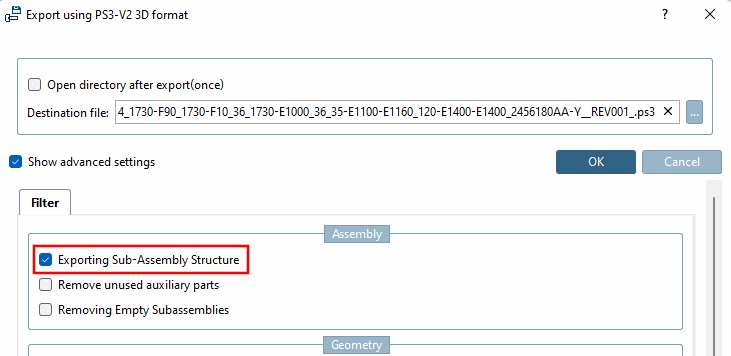

You can also transfer the subassembly structure to the CAD system
On this in the
configuration file under $CADENAS_SETUP/partsol.cfg ->
Key ExportSubAssemblyStructure set the
value on "true".
[COMMON] ExportSubAssemblyStructure=true
The feature is available for all CAD interfaces.
The following figure shows an assembly with subassembly in PARTdataManager.

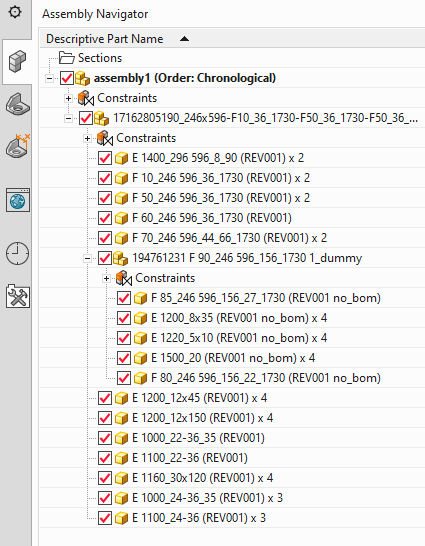

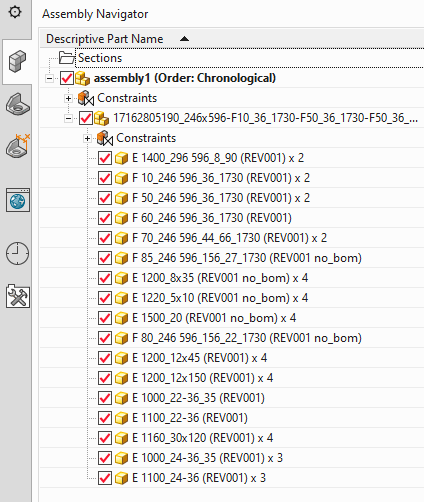

The following two figures show the assembly structure (exemplarily in Solidworks) once with and once without subassembly.
