5.12.3.1. Classification (CNS) 5.12.3.1.2. Class "CNSERPBASE" -> Feature "CNS_RAWMATERIAL"
Prev	Next

Semi finished products can be classified as such.^[42]

Example of semi finished product

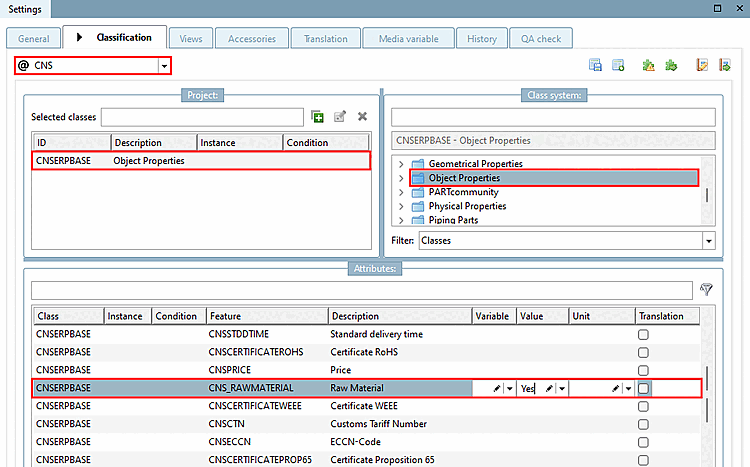

Under Edit project -> General -> Classification > Attributes (CNS), the feature CNS_RAWMATERIAL can be set to 1.

	Note
	Within workflows with PDM systems, semi-finished products are differently handled, e.g. not checked in into PDM systems. Furthermore semi-finished products are no standard parts, which affects the write protection, meaning changeability. Important in connection with semi finished products is setting the correct Identification type. See Section 7.8.13, “ Identification type ”. Semi-finished part - Dimension attribute pinned In PARTsolutions with ERP integration the behavior of fields with dimensioning attribute can be administratively controlled. See Section 4.17.2, “ Pinning Dimension attribute OnOff / plinkcommon.cfg -> Block [PARTdataManager] -> Key "LockDimRange" ” in PARTsolutions - Administration Manual.

^[42]As of V11 the declaration in ifacecommon.cfg is not necessary. See Section 2.2.11.6, “ Block [RAWMATERIALS] ” in PARTsolutions - Administration Manual.
