In PARTproject all information necessary for the display and selection of parts and assemblies in the PARTdataManager is included.

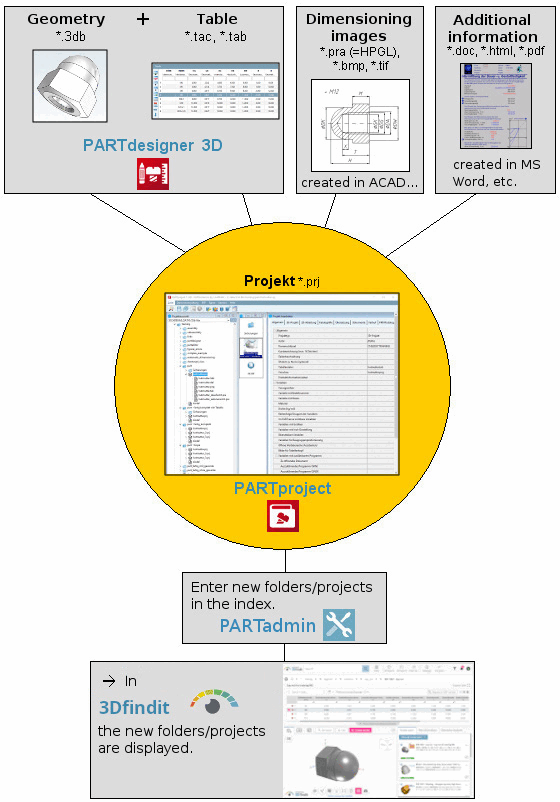

Geometry, attribute table, dimensioning images and additional information together compose a project with project file *.prj.

Below the *.prj file (it will later be opened in PARTdataManager) there are individual files of which the product is composed. *.3db (3gb) - Geometry (see Section 5.2.1, “Opening PARTdesigner ”) *.tab / tac - Characteristic attribute table (see Section 5.2.1, “Opening PARTdesigner ”) *.pra, *.png, (*.bmp) - Preview images (seeSection 5.11.2, “External creation and import/conversion of Dimensioning views ”) *.pdf, *doc, etc. - Additional information *.def - Translations (see Section 5.8.2.1.13, “ Translation ”) *.dim - Dimensionings (see Section 7.15, “ Docking window "Dimensionings" ”)

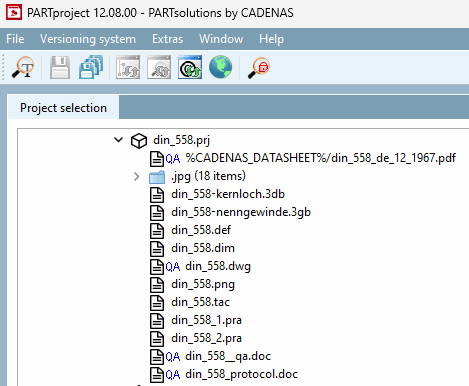

"Project selection" dialog area
