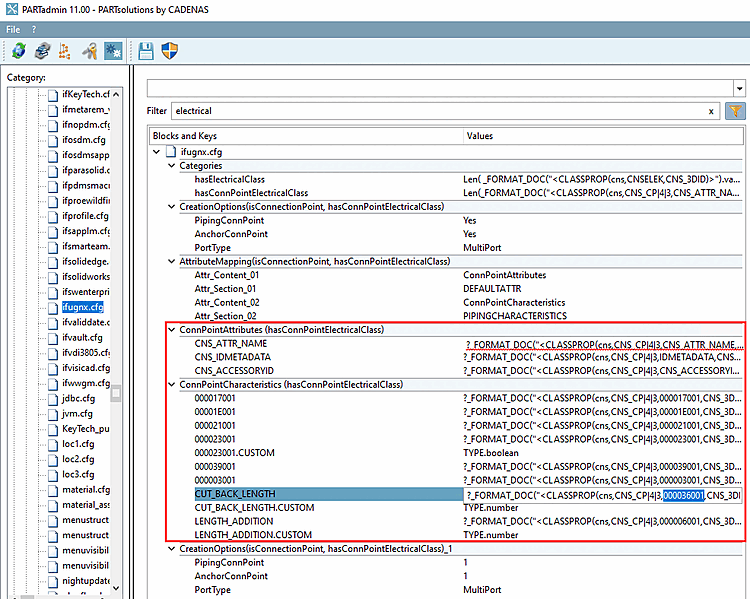

The mapping between NX features and PSOL features can be found in the configuration file ifugnx.cfg in the following blocks:

Example: Mapping between NX attribute "CUT_BACK_LENGTH" and PSOL attribute "000036001"

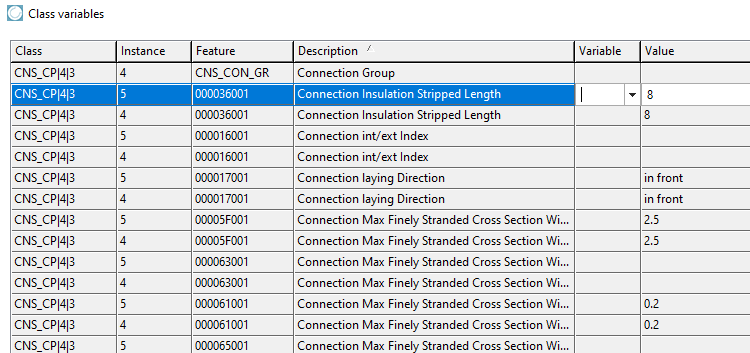

The characteristics of class CNS_CP|4|3 (Electrical Connection) are listed in the Class Variables [Class variables] dialog box.

Example: The NX attribute "CUT_BACK_LENGTH" corresponds to the PSOL attribute "000036001" (Connection Insulation Stripped Length)

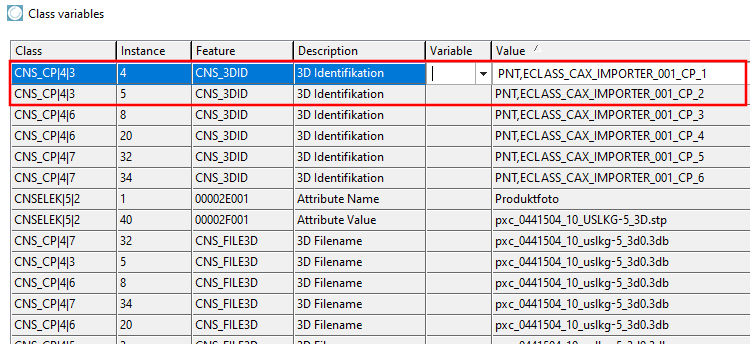

Terminal data of the individual subports of a multiport, such as connection points and names, are available for Routing Electrical.
