3.1.15.  Configurations and templates
3.1.15.4. Assembly Table Project
Prev  Next

3.1.15.4. Assembly Table Project

An Assembly Table Project is constructed via a configuration and template.

The advantage is that it contains a superior table which controls the single parts.

An assembly as with the configuration does not apply.

[Note]Note

If you have installed the "training.cip", you can find the example under "Training/Baugruppen/Scharnier/S 102 Scharnier".

Assembly Table Project / Hinge

Assembly Table Project / Hinge

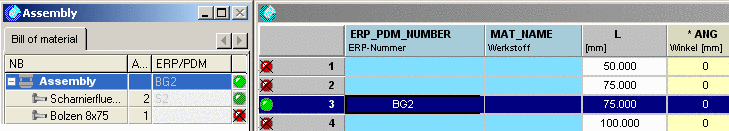

Under Assembly -> Bill of material you can select the assembly or any single part. You will then see the respective table. Compare also Fenster "Aufbau" - Stückliste.
