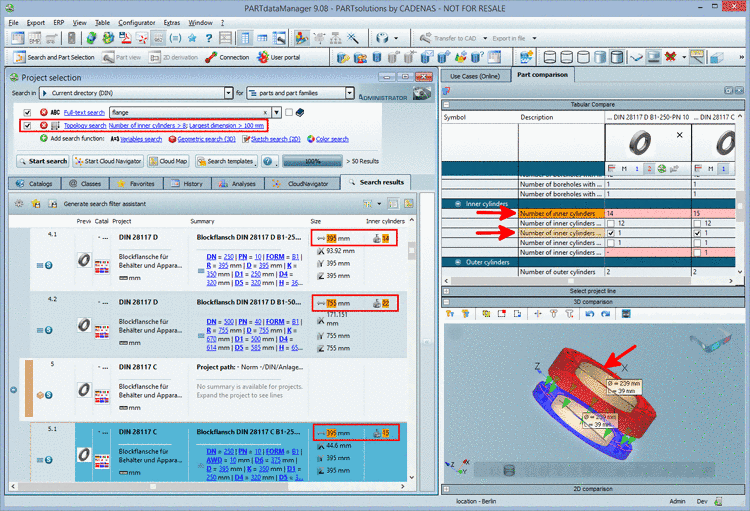

Topological parameters are color-marked so that you can see the most important ones at a glance.
Explicitly searched topological attributes are marked in orange color by default, as it is in the search results.
The default color may be set in PARTadmin under $CADENAS_USER/psolopt.cfg. Furthermore the use of color can be enabled and disabled there.
[PARTCOMPARESETTINGS] SelectMatchingGeoProperties=1 MatchingGeoPropertyColor=#FF9900
Those topological parameters which can be marked in the 3D view (Inner Cylinders, Outer Cylinders for example), have a checkbox in the listing under Tabular Compare.
If you activate a checkbox then the respective parameter is color-marked both in the Tabular Compare and in the 3D comparison. Different parameters get different colors (regardless of whether they have been automatically or manually marked)
