Respective license for the Classification Wizard has to be available, otherwise an error message appears.

Error message

The geometrical index has to be up-to-date.

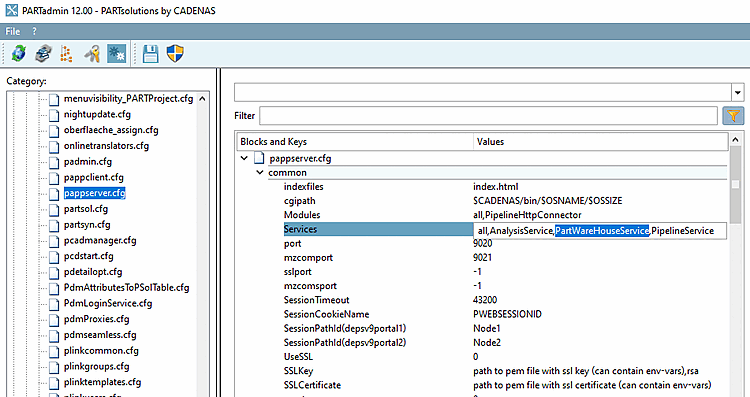

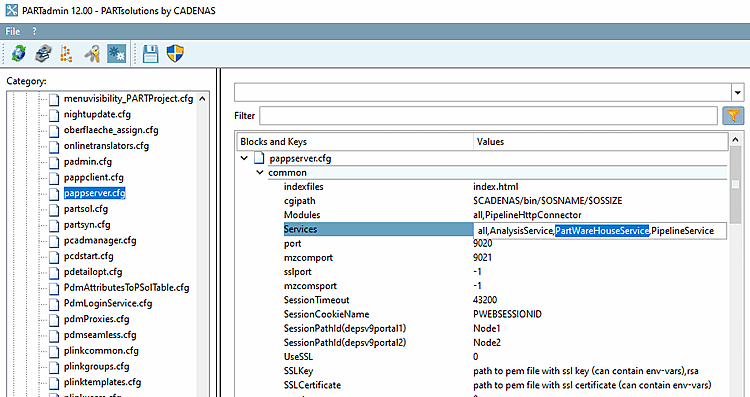

The PARTwareHouse Service has to be set in the configuration file pappserver.cfg, in the block common, under Services with value PartWareHouseService.

A catalog with existing class structure has to be available.

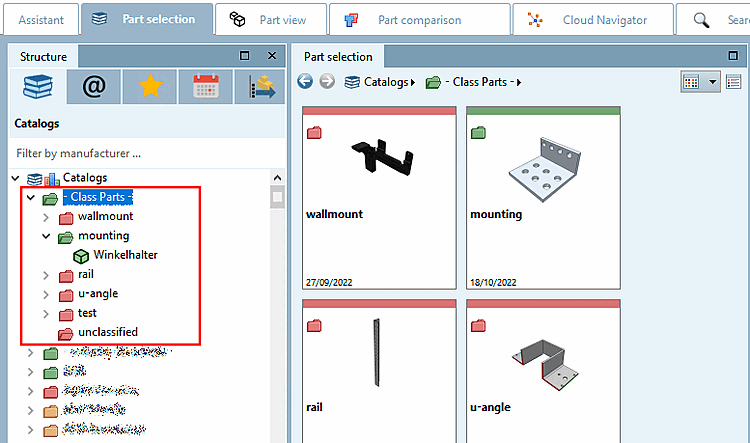

Exemplary class structure, which is used in this example.

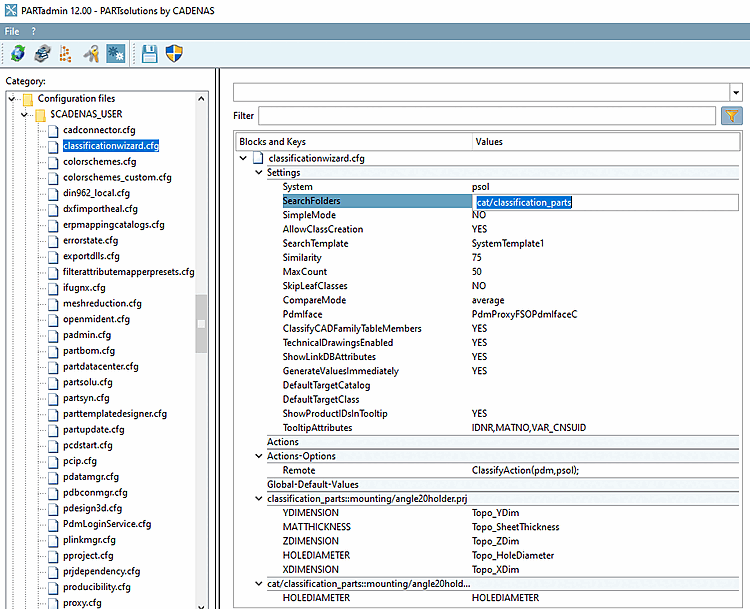

Enter the catalog name under $CADENAS_USER\classificationwizard.cfg-> block Settings -> key SearchFolders.

cat/catalogname

In order for the CAD system not be exited after each classification process, under $CADENAS_SETUP/pdmProxies.cfg, block PdmProxyTranslator set the key BatchMode to 0 (default is 1).

Depending on installation type, possibly the PARTapplicationServer has to be started as service (not needed for local use via OfflineCD).
