In CAD, select the desired part for which you want to perform the geometric search.

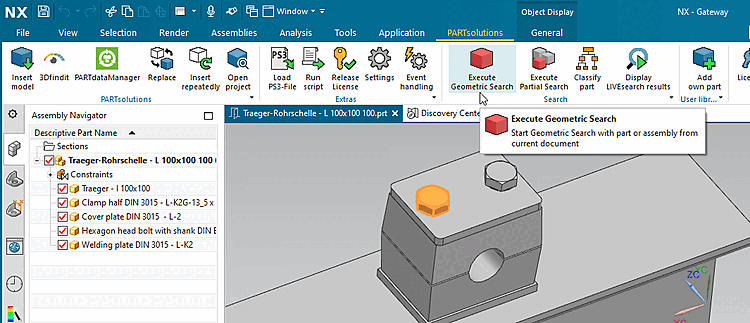

Click on the button Geometric Search . [Execute Geometric Search]

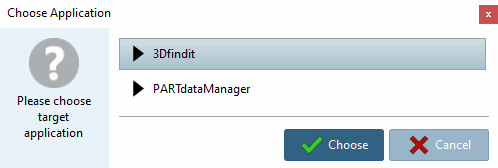

-> The Select application [Choose Application] dialog may open.

Select the application in which the search is to be carried out and confirm with Select [Choose].

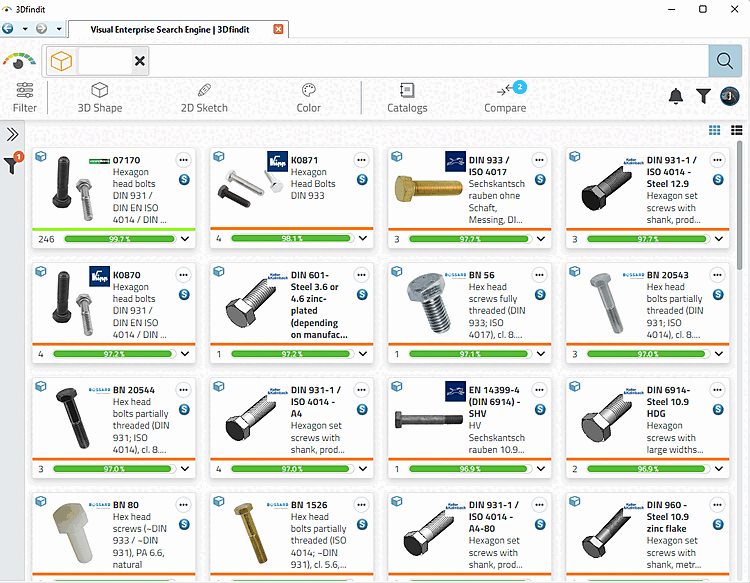

-> The results are listed.

Optionally, you can also make restrictions using the facet filter, see Section 4.3, “ Filter ” in 3Dfindit Enterprise - Manual.

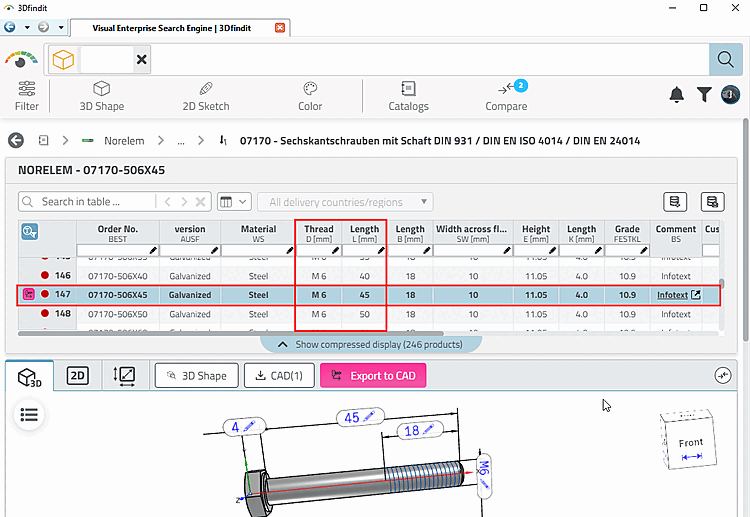

For example, open the first/best match. This part would be, for example, an almost identical replacement part (99.7%).
