3.1.15.1. Icons on catalog level

3.1.15.1.1. Catalog Quality Seal

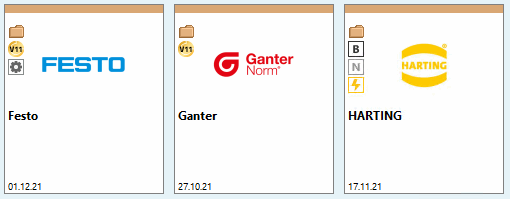

In the top right corner of the catalog preview image you can see informative icons.

Catalog icons: Example with E, 2D

Catalog icons: Example with E, 2D

Icon

Meaning

E = Catalog excerpt

2D = 2D catalog

C = Customer catalog: Catalog has been created by supplier itself (not by CADENAS)

B = BMEcat catalog: Catalog has been created via the electronic BMEcat exchange format

N = Neutral catalog: Catalog has been created with a Neutral Format Importer

! = Confidential Catalog

D = Demo catalog

I = Internal catalog: Catalog is only used internal by customer

Mechatronic Concept Design (MCD)

PDF = PDF catalog: Catalog consisting of PDF documents

Electrical parts

Pipeline construction

In the top left corner of the catalog preview image also informative icons can be displayed.

Icon

Meaning

Version 8/9/10/11/12 Catalog Quality Seal Gold (see Section 3.1.15.1.1, “Catalog Quality Seal ”)
Version 8/9/10/11/12 Catalog Quality Seal Silver (see Section 3.1.15.1.1, “Catalog Quality Seal ”)
