Switch to the role "Berlin".

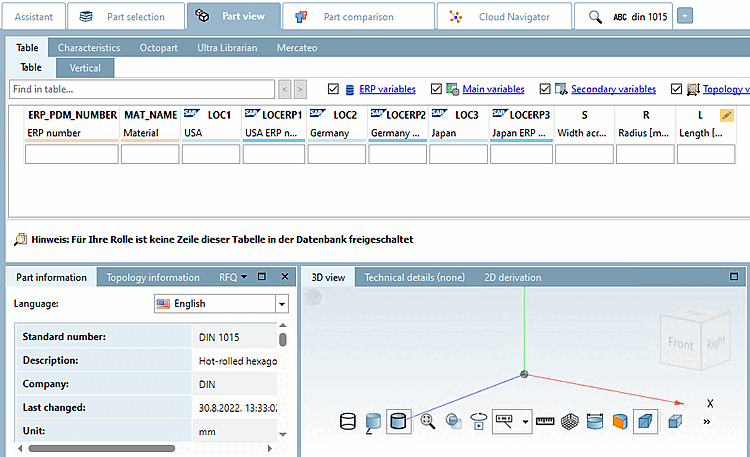

Display condition for table rows [Viewing condition for table rows]: No hit

-> No table rows are displayed.

Reason: LOC1 only displays rows that meet the display condition for table rows [Viewing condition for table rows].

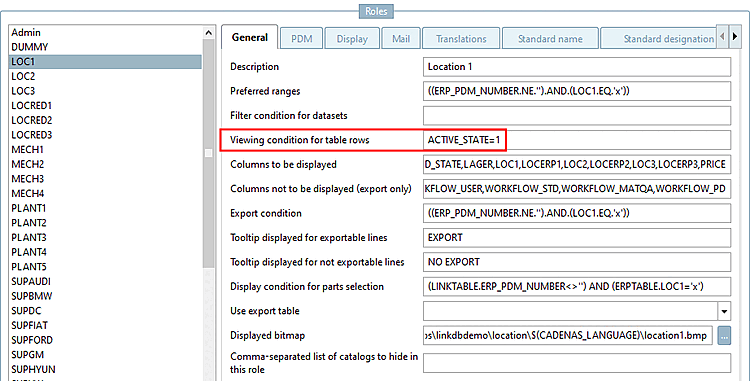

ACTIVE_STATE=1

ACTIVE_STATE=1

You can see which lines "ACTIVE_STATE=1" applies to (1 stands for "Released") in the PARTlinkManager. In relation to the above example with ISO 4762, these are only a few lines.

(The basic prerequisite for this is, of course, that there is an entry in the link database at all; and even if there is, ACTIVE_STATE can still have the value 0 [Locked].

Open PARTlinkManager and filter for DIN 1015.

The DIN 1015 project only has 28 rows and the entry in the ACTIVE_STATE column is "Locked" for all rows, which contradicts the condition in Display condition for table rows [Viewing condition for table rows]. Value '1' = "Released" is required there.

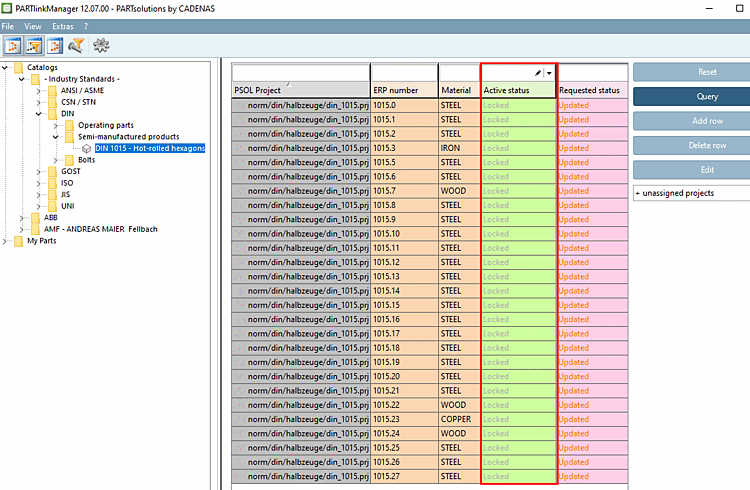

ACTIVE_STATE = "Locked" [0]

	Note
	The ACTIVE_STATE column is not displayed in PARTdataManager is not displayed.

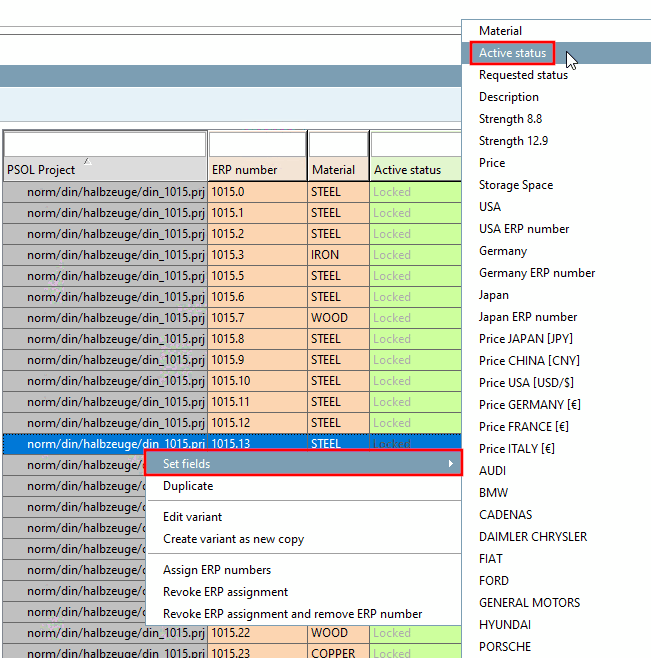

Exercise: In PARTlinkManager, set the value of ACTIVE_STATE to 1 [Released] for any line using the context menu command Set fields and restart PARTdataManager restart PARTlinkManager.

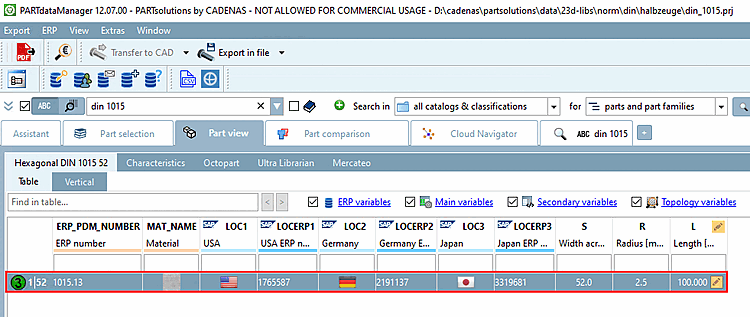

For the displayed row, in ACTIVE_STATE, the value equals 1

For details see Section 7.1.4, “ Display condition for table rows - plinkgroups.cfg -> Block [Role_name] -> Key "TABRESTRICTION" ”.
